I've noticed yesterday that my MR52 access pt., that link aggregation is not working. Is there anything need to configure in the Access Point itself? It was working before when i installed it., speed operation should be a total of 2gbps for both 2 x 1000Mbps ethernet port.
Solved! Go to solution.
Your Ethernet 1 is showing negotiated to 100Mbps.
You won't be able to have a 1Gbps link and a 1Mbps link in an etherchannel.
Swap out the cables for that connection. Most likely a cable issue.
Check the documentation.
What type of switch is the MR connected to and is link aggregation enabled at that end?
It looks like a catalyst switch. Don't you think?
cisco catalyst 2960-x
Your Ethernet 1 is showing negotiated to 100Mbps.
You won't be able to have a 1Gbps link and a 1Mbps link in an etherchannel.
Swap out the cables for that connection. Most likely a cable issue.
It makes sense.
thanks a lot, just replaced the lan cable.

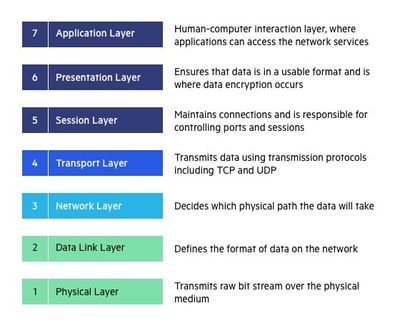

@guile99 , remember your OSI model? Work from the bottom when troubleshooting.
