Mounting option for channel drop ceiling?

Here to help

Mounting option for channel drop ceiling?

Does anyone have any suggestions as to how to mount an MR53 to a channel drop ceiling grid?  Cisco has an option to use the AIR-CHNL-ADAPTER but I don't see anything for Meraki AP's.

12 Replies 12
Building a reputation

I believe the MR53 comes with mounting hardware for a drop-ceiling grid.


Take a look at page 4 of the MR53 datasheet.  The largest metal parts in the black foam twist on to the ceiling grid and are locked with set screws.

Kind of a big deal

Correct the MR's come with a mounting kit.  Part of that kit includes little twist clamps (bottom right of picture below) that mount and slide on the grid then the bracket mounts to those clamps.


If this was helpful click the Kudo button below
If my reply solved your issue, please mark it as a solution.

Both of you are correct if I were mounting to a T-Rail drop ceiling grid.


In my case, I need to mount these AP's to a Channel drop ceiling grid as shown in the center image.  The left image is the T-Rail grid and the right one is a Beam grid.  For the middle and right Cisco sells the AIR-CHNL-ADAPTER adapter to mount all of their AP's to both of these types of ceiling grids.  I cannot use that adapter to mount Meraki AP's so I was wondering if anyone knows of a viable solution for these two other types of celings.


Kind of a big deal

Do you have any of those AIR-CHNL-ADAPTER adapters to test to see if they line up with any of the holes on the MR bracket?

If this was helpful click the Kudo button below
If my reply solved your issue, please mark it as a solution.

They do not.  If you are familiar with the Cisco mounting bracket the two clips on the bracket meet together on the T-Rail whereas with the Meraki clip the two ends are about 2 inches apart.  If I were to use the adapter I would need 4 of them and that is not a workable option.

Kind of a big deal
Kind of a big deal

It looks like you'll be using screws ...

Sadly it looks that way.

I do suggest if you are screwing them into the ceiling tiles make sure you fix them into a piece of wood on the other side of the tile. I've seen lazy jobs where people haven't fixed them into wood and the AP has fallen off the ceiling!

I was actually thinking of drilling into the channel grid as I don't trust the tiles to hold any AP.  If I were to rely on the tile I would use a board long enough to span the tile and rely on the grid work, never the tile.

I saw this post and thought I would offer assistance.  In the past you had to use Cisco's  AIR-CHNL-ADAPTER brackets and mount the Meraki Adapters to it. Meraki has its own clips that work like the AIR-CHNL-ADAPTER brackets, but look like the normal adapters that are shipped with APs.  The difference is the clips are deeper.  I know it's hard to describe but this part number: MA-MNT-CLG-1  includes a pair of deep drop ceiling clips for channel rail as well as spare T-Rail adapter clips which supports both recessed T-Rail and flush T-Rail. The deep drop ceiling clip works well with "Armstrong Silhouette" and similar ceiling grids which are found in newer building designs, its basically a channel rail (not a T-Rail). This kit is compatible with all Meraki MR access points and MV21 & MV71 security cameras.

Everyone knows the T-Rail here's a good picture of it:

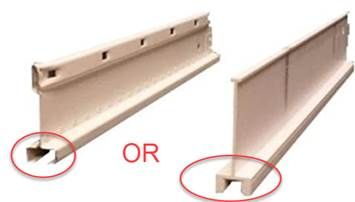

Meraki APs Come with an adapter for this by default. but If you want to mount on



the channel rails pictured above, you will want to order MA-MNT-CLG-1

separately when ordering your APs.

Good luck out there all!!!


Thank you for the update.  That is good to know.

Kind of a big deal

This is the only specialized ceiling mount kit Meraki sells: MA-MNT-CLG-1


While this includes adapters for "recessed" t-rails, it doesn't sound like this will work for your application.
