Out of band management interface on Catalyst 9200L running in Cloud Operating Mode

[Yostie]

We are currently testing Catalyst 9200L with IOS-XE 17.15.3 in Meraki Cloud Operating mode.  Converting the switch to Meraki mode was easy.  I do have a question about dashboard connectivity options.  When we converted, it created a VLAN1 SVI and connected to the Dashboard right away.  I am trying to set up an automated testing environment and my preference would be to have any switch we are working with(9200 now, 9300 in the future, both L2 and L3 use cases) use the out of band management interface to connect to the Meraki Dashboard to keep the dashboard management traffic completely separate from data plane traffic so changes can be made and not have to worry about losing dashboard connectivity.

Is this possible or am I limited to using an SVI to talk to the Dashboard?  Is creating a VRF, putting the management SVI into that VRF, and talking to the Dashboard that way possible?

[Mloraditch]

Using the OOB port is not possible.

As to VRFs it feels like that may work but the feature only became available earlier this week and the documentation doesn’t address it.

https://documentation.meraki.com/MS/Layer_3_Switching/VRF

If you have a lab switch perhaps put the 17.18.1 beta on and see if it works!

[CKnetworking · Accepted solution]

Hi,

out of curiosity, I gave it a try in my lab with a Catalyst 9300 and IOS XE 17.18.1 beta: It doesn't work. As soon as you select a VRF other than the default one in the interface editor, the "Uplink" option gets greyed out (and automatically deselected if you've selected it before setting a custom VRF).

Best regards,

Chris

[Yostie]

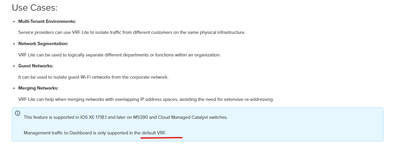

hehe I ended up opening a case last week with TAC to ask the question.  After finally getting the engineer to understand what I was talking about, he went back to his peers to discuss.  They ended up updating the documentation to clarify only the default VRF can be used for dashboard management traffic.

https://documentation.meraki.com/MS/Layer_3_Switching/VRF#:~:text=This%20feature%20is%20supported%20....

[GIdenJoe]

The OOB port is actually being used for the local status page in addition to the front pages on the separate IP.  In the current implementation you can't have the management on another VRF.

[DarrenOC]

I obviously don’t know your environment but could you keep this simple and use a single interface on your switch purely for management and have that connected directly into your firewall/upstream device?  This way you can control changes to all other ports just as long as you don’t push anything to that uplink?
