HI Team,

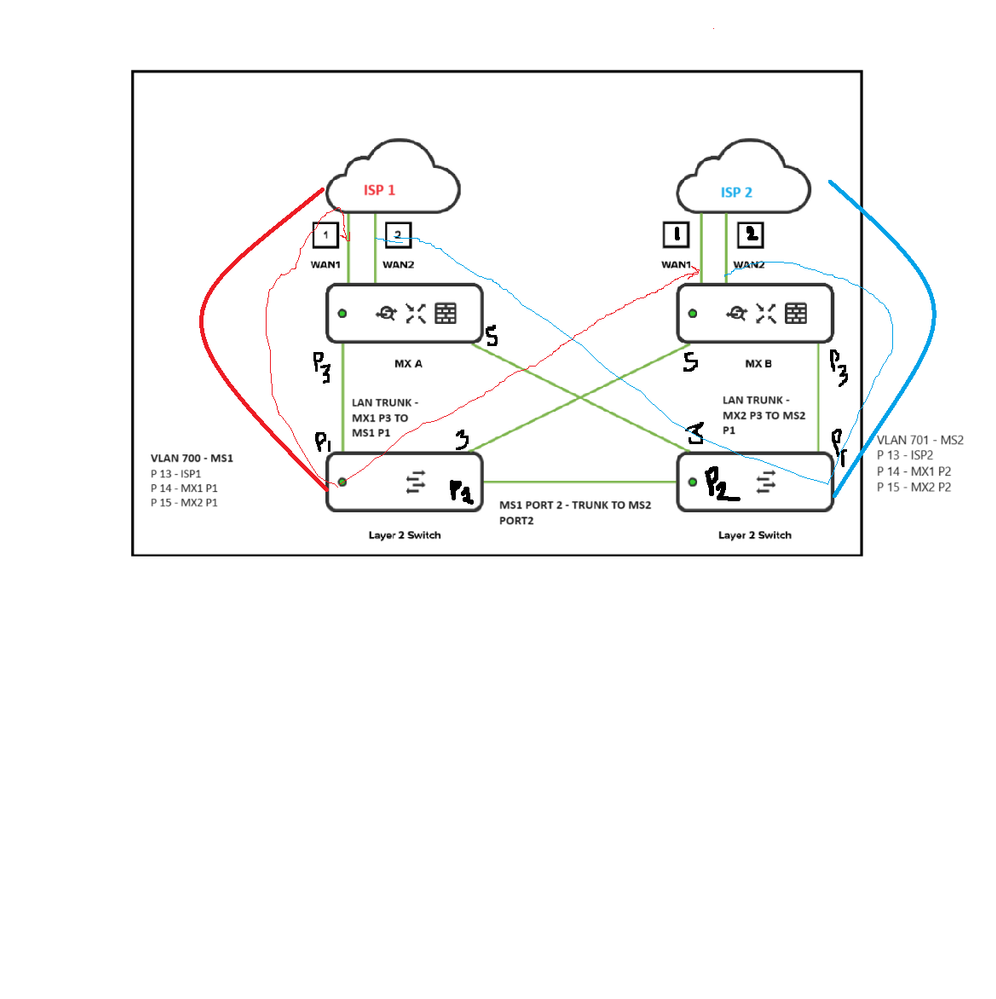

I have configured MX 84 HA setup exactly as per the below diagram, and I am able to get Internet from switches on both the WAN ports in MX1, but the MX2 SPARE is showing as "Unreachable" and HA link is showing GREEN on both.
Device - 2 MX 84 and 2 MS MS250-48LP
Below are the Public IPs I got from both of my ISPs
ISP 1 - 49.xx.1.104/30
49.xx.1.105 - PE and 49.xx.1.106 - CE
49.xx.8.168/29 - Lan Public IP's
ISP 2 - 182.yy.80.104/30
182.yy.8.105 - PE and 182.yy.8.106 - CE
182.yy.3.104/29 - Lan Public IP's
Configuration on MX1 WAN Ports:
On MX1 WAN Port 1 - I have configured /30 of ISP 1
On MX1 WAN Port 2 - I have configured /30 of ISP 2
The Internet on both WAN Ports of MX1 is fine, but Spare is showing Unreachable.
HA Config Model of other Vendor:
For any Vendor models , we just configure WAN link with /30 ips on ACTIVE Device and this same configuration will be replicated to Passive DEVICE. In terms of failure the Passive device gets ACTIVE Device configuration and will be UP and running.
Not sure how the Meraki HA works?
Team, can some one pls help out here??
Solved! Go to solution.
Thank you very much @KarstenI. For addressing all my queries in a single answer.
Option 1: Is the easiest, but hv to do some paper work with ISPs.
Option 2: Also looks good. Can you pls guide me in achieving it::
Step 1: Create a L3 interface on the MS250 MS-1 Switch and connect the ISP1 interface and configure /30 Public WAN IP and same for MS-2 MS250 switch L3 interface for ISP2.
Step 2: Create a SVI in MS1 and have L3 connection to both the MX1 and MX2
e.g - MS1 :
Vlan 710
ip address 49.xx.8.169/29 -- GW
MX 1 - 49.xx.8.170/29 - WAN 1
MX 2 - 49.xx.8.171/29 - WAN 1
MS2 :
Vlan 711
ip address 182.yy.3.105/29 -- GW
MX 1 - 182.yy.3.106/29 - WAN 2
MX 2 - 4182.yy.3.107/29 - WAN 2
After that what should be done for establishing Internet connection??
The Meraki MX works differently than you expect. Both devices need a constant connection to the dashboard. With the /30, you are pretty limited here.
What can you do:
EDIT: I didn't see that you have /29s on the LAN side. If option 1 with a /29 transfer is not possible, then option 2 is even easier. Instead of a NAT router you can take two small L3 switches and work without NAT. On this L3-Switch, the /30 goes to the ISP, the /29 goes to the MXes.
Some more information on the different options:
https://cyber-fi.net/index.php/2024/02/19/connecting-your-meraki-mx-to-the-internet/
Thank you very much @KarstenI. For addressing all my queries in a single answer.
Option 1: Is the easiest, but hv to do some paper work with ISPs.
Option 2: Also looks good. Can you pls guide me in achieving it::
Step 1: Create a L3 interface on the MS250 MS-1 Switch and connect the ISP1 interface and configure /30 Public WAN IP and same for MS-2 MS250 switch L3 interface for ISP2.
Step 2: Create a SVI in MS1 and have L3 connection to both the MX1 and MX2
e.g - MS1 :
Vlan 710
ip address 49.xx.8.169/29 -- GW
MX 1 - 49.xx.8.170/29 - WAN 1
MX 2 - 49.xx.8.171/29 - WAN 1
MS2 :
Vlan 711
ip address 182.yy.3.105/29 -- GW
MX 1 - 182.yy.3.106/29 - WAN 2
MX 2 - 4182.yy.3.107/29 - WAN 2
After that what should be done for establishing Internet connection??
Thanks @jasonbrown23 for the quick reply. Will try to implement as suggested, but instead of DMZ switch, can i use to MS250-48 LP switch?
Also any cons on using Internet links on DMZ switch and /29's on the MX's??
