MX67 Per port Radius

Goodday,



Is it possible to use a radius server that is not accessible trough the internet?



Currently I have a HUB with three SPOKES. The Hub is connected to a LAN with port 2. The next hop is a customer FW through which all traffic is routed. Behind that firewall is a raduis server, 10.11.1.7 & 10.11.1.8 port 1500 (fictional).  Both adresses are reachable via ping.

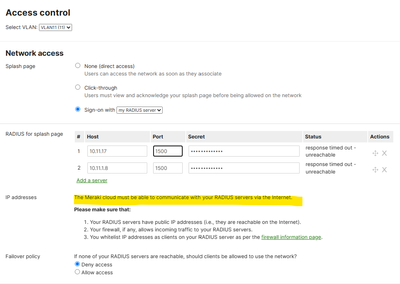

According to the Access Controle page the radius server should be accessible from the internet. That is possible.





Is there another ways clients of the SPOKES can log on via radius?

1 Accepted Solution
ww
Kind of a big deal
Kind of a big deal

For per Port radius you have This option



For splash auth your radius talks to the meraki cloud as mentioned



View solution in original post

4 Replies 4
ww
Kind of a big deal
Kind of a big deal

For per Port radius you have This option



For splash auth your radius talks to the meraki cloud as mentioned



alemabrahao
Kind of a big deal
Kind of a big deal

If you are using splash page it's a requirement, so it's not possible.

I am not a Cisco Meraki employee. My suggestions are based on documentation of Meraki best practices and day-to-day experience.

Please, if this post was useful, leave your kudos and mark it as solved.
PhilipDAth
Kind of a big deal
Kind of a big deal

This is it.  The Splash page is hosted on the Internet - so it can't talk to your internal RADIUS server directly.

Mx7733
Here to help

That was indeed my error, the splash page. Thanks all! Kudos +1
