MX - Device utilization degradation after upgrading to MX 18.2
Hi ,
We are currently upgrading from MX 18.107 to MX 18.211.3. Upgrade date is sept 26th and devices are MX68CW.
After upgrading 500 networks I noticed a general trend. Device utilization is going up in 80% of our networks.

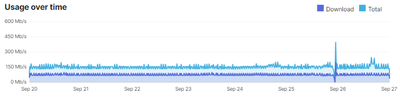

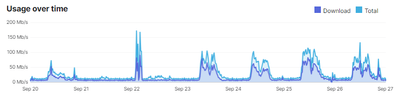

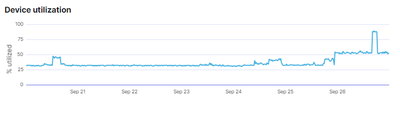

Some are more obvious :
Anyone else encountered this ? I was expecting a better device utilization not worse 😐
- Labels:
-
Other
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Not related to this issue, but I noticed my test units kept dropping the WAN connection every 24/36 hours. After a downgrade everything has cleared up.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Yes, I saw this and 19.1 seems better, so I have been running that where I can 'risk' a beta.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
oof... I hope I won't encounter major issues. I don't wanna halt my deployement because of that.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
I have seen similar problems and it is surprising that cmr found 19.1 to be better. If you’re okay with getting into beta testing, you might want to give that version a shot.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Little update : This increase of device utilization seems to be caused by the IDS/IPS module. We are running in IDS Security mode.
More to come.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

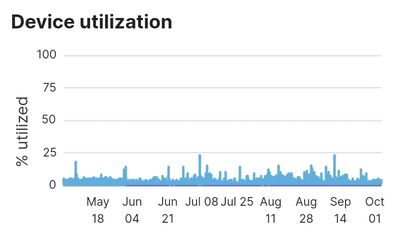

I upgraded an MX75 running the IDS in security mode from 18.1xx to 19.1 in June and as you can see below the usage didn't really change:
Though looking at it again it might have increased very slightly... I do however remember the increase with 18.2xx being quite marked.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Why not try one site with 19.1, it's been very stable for me since June, which is more than can be said for the MR beta releases... 😬
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Can't do , we do not run beta firmware in production 😔
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
I suggest you open a case to get more visibility on that issue !
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
just out of curiosity you might want to call in and check the number of flows going to the device we were having a similar issue and turned out we were flooding the 450 with DNS traffic. We offloaded the traffic and our numbers are looking MUCH better
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

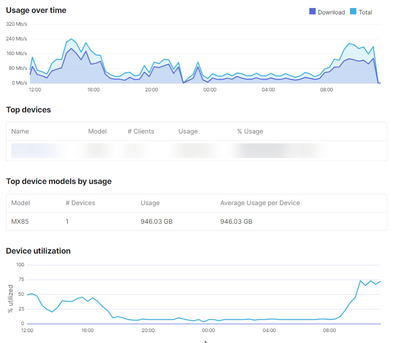

Even a MX85 is struggling since we upgraded it this week :
Support has suggested to go to MX 19.1.4 since some fixes are present in that version that are not yet ported to MX18.2 . Not a fan of running beta firmware while 'stable' firmware is not even stable but I will give it a try.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

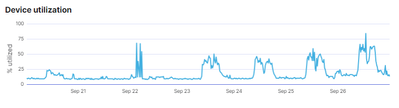

Yes. I confirm an HA pair MX105 is struggling to stay below 50% and it is hardly doing anything
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
When did you upgrade yours ?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
about one month ago.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

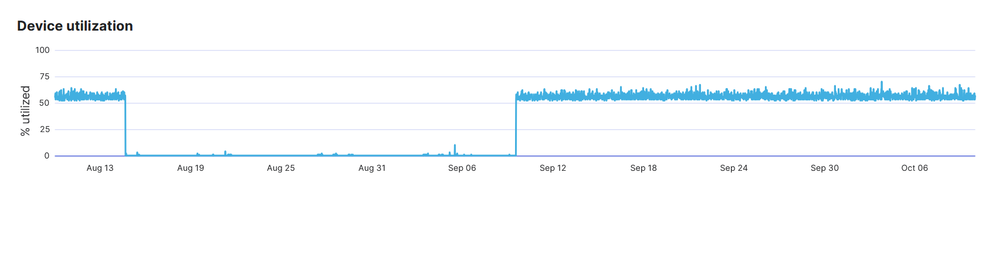

So you had already problems prior to your upgrade... looking at the utilization around aug 13th
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
before that they recommended a reboot and I did it. The problem was solved. The after that I opened a case and they said this:
I apologize for the issues you've been experiencing with the high utilization of your MX.
---
After investigating, I found that there is a known backend issue causing high CPU utilization following the upgrade to firmware version 18.211.3. As a workaround, we would need to disable the backend feature internally on your MX and downgrade it to version 18.211.2, which is the current stable release.
I recommend reaching out to our support team at your convenience by calling +1 415-937-6671. We’re available 24/7, and any engineer will be able to assist you with this issue.
----
I never called them. The whole backend issues sound fishy to me
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Would be curious to know what backend feature they are refering to.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Wow, that is some utilisation! I haven't yet upgraded to 19.1.4, but 19.1.3 has been stable for months for me.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Just a question, but is not rolling back to 18.1 not an option?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
It is an option. But I want to get to the bottom of that story before downgrading since Meraki doesn't seem to know at all what is causing that.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
I called them again but they still don't know the trigger. The workaround is the downgrade. They referred as well once again to the backend feature. Really odd! Meraki support is good when you need their assistance with basic things: configs, licenses, packet captures and so on. When the issues are bugs you can never get a clear explanation.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
That's most companies :).
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
We saw the issue with MX 85 / 95 units on 18.107.2. MX's running 95% utilization or better! 18.107.3 seemed to correct the issue.
Learned to look at this python script / API call after upgrades after that!
