ECMS Practice Question - Jan 29th

SOLVED
RafaelM
Meraki Alumni (Retired)

ECMS Practice Question - Jan 29th

ECMS Question

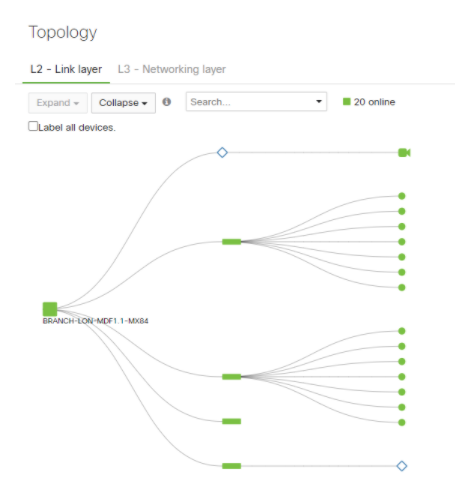

Look at the image below. It shows a layer 2 network topology diagram inside the Meraki Dashboard. Which sentence is true regarding the topology?



  1. It can be downloaded in JPEG format.
  2. It shows two devices that are offline.
  3. It supports both Meraki and non-Meraki devices.
  4. It is built based on the default routes (0.0.0.0/0) in the switches.
  5. It allows administrators to see static routes for particular nodes by hovering over them.




~~If you found this post helpful, please give it kudos. If my answer solved your problem, click "accept as solution" so that others can benefit from it.~~

The Meraki ECMS exam is now live! Test your knowledge of Meraki and become an official Cisco Meraki Solutions Specialist. More info on the ECMS exam found here.

For information regarding all of Meraki's training offerings, be sure to check out the Meraki Learning Hub.
1 ACCEPTED SOLUTION
RafaelM
Meraki Alumni (Retired)

The correct answer is c! The network topology on the Meraki Dashboard supports both Meraki and non-Meraki devices. Options d an e were correct statements about the Layer 3 topology, not the Layer 2.

~~If you found this post helpful, please give it kudos. If my answer solved your problem, click "accept as solution" so that others can benefit from it.~~

The Meraki ECMS exam is now live! Test your knowledge of Meraki and become an official Cisco Meraki Solutions Specialist. More info on the ECMS exam found here.

For information regarding all of Meraki's training offerings, be sure to check out the Meraki Learning Hub.

View solution in original post

6 REPLIES 6
Slobs2
Getting noticed

C.

UCcert
Kind of a big deal

C - shows Non Meraki eqpt if one hop away. Represented by an empty diamond.

Darren O'Connor | uccert.co.uk
https://www.linkedin.com/in/darrenoconnor/

I'm not an employee of Cisco/Meraki. My posts are based on Meraki best practice and what has worked for me in the field.

C is correct and diamond may also denote Meraki device(s) that are on a different Org/Network

ECMS-550-220
Conversationalist

Correct Ans is A

It can be downloaded in JPEG format



Ques is asked aboout topology

Trick question maybe as yes if you took a Windows or Mac Screenshot then you can store that as JPEG.

BUT if you Navigate in Meraki Dashboard to Network-wide--->Monitor--->Topology the Download option only saves in SVG format graphics file.

So still think C is the correct answer.

RafaelM
Meraki Alumni (Retired)

The correct answer is c! The network topology on the Meraki Dashboard supports both Meraki and non-Meraki devices. Options d an e were correct statements about the Layer 3 topology, not the Layer 2.

~~If you found this post helpful, please give it kudos. If my answer solved your problem, click "accept as solution" so that others can benefit from it.~~

The Meraki ECMS exam is now live! Test your knowledge of Meraki and become an official Cisco Meraki Solutions Specialist. More info on the ECMS exam found here.

For information regarding all of Meraki's training offerings, be sure to check out the Meraki Learning Hub.

View solution in original post
