Hi there,
I have created a test network. Essentially, 1 SSID (10.10.10.0/24) I have only a laptop and a printer connected via the AP. So Wirelessly connected to the same SSID and I cannot print anything. I have tried pinging the printer from laptop and no joy. I have all relevant drivers connected etc. I used my phone as a hotspot and connected both and all worked as expected. Any help much appreciated. My full kit is..Meraki MX to Switch to AP. Nothing crazy just 1 vlan created for the Test SSID and trunked all the way from MX to AP.
Any help much appreciated

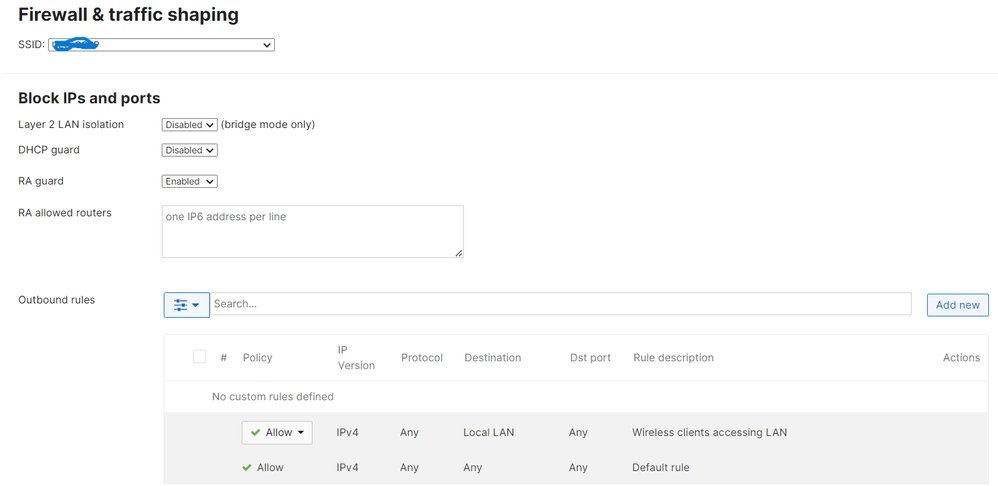

Check if you mr ssid firewall is blocking anything on L3 or that l2lan isolation is enabled
https://documentation.meraki.com/MR/Firewall_and_Traffic_Shaping/Wireless_Client_Isolation
Hi there,
Many thanks for your reply. I can see L2Lan isolation is not enabled (Which is correct?) and no deny rule in place. Any other suggestions much appreciated

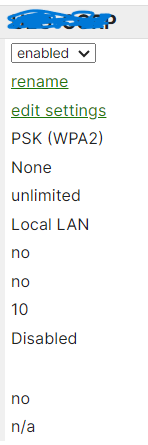

Could you please share the SSID configuration with us?
Still having the issue. Also from the dashboard I can ping the printer from all other SSID's Vlans I set up, which I dont want, especially the test guest SSID. I have attached all relevant information. Hope you can shed some light on this.
Quick question, are both printer and device receiving IP?
Hi there,
Yes both printer and device are receiving IP. I can ping them both from Meraki dashboard from all vlans.
