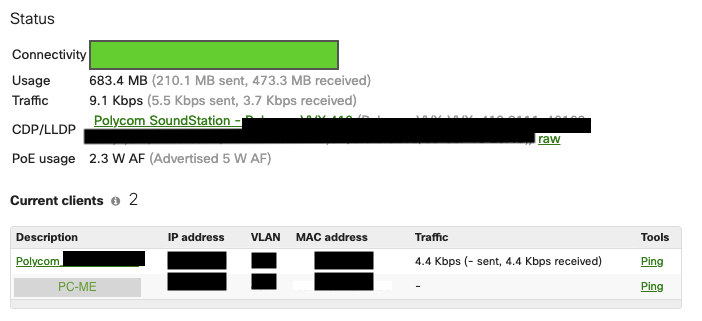

Hi Please see the below picture, which is from switch summary. I would like to know whose mac is there? Is it PC's mac or ip phone mac? If PC and ip phone are all connected to the same port, can we see the two mac address there? thank you!
Yes you can know which MAC Address belongs to who. As you can see below PC-ME is the computer attached and the Polycom is the VoIP phone.

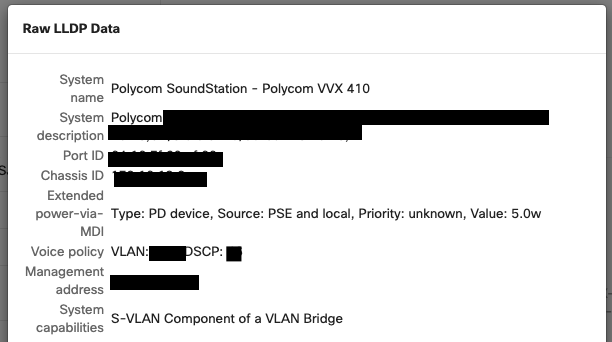

If for whatever reason the devices appear the same and you can't determine by the device name. The CDP information will be the device directly connected to the port. So you can click on the "raw" and verify the mac address and IP address to make sure it's the VoIP phone.
It says there Port 1. If you go to the actual port you should see a CDP/LLDP of what's connected to that switchport. If something is connected to the phone you should see both connections.
Yes you can know which MAC Address belongs to who. As you can see below PC-ME is the computer attached and the Polycom is the VoIP phone.
If for whatever reason the devices appear the same and you can't determine by the device name. The CDP information will be the device directly connected to the port. So you can click on the "raw" and verify the mac address and IP address to make sure it's the VoIP phone.
