Port aggregation

Hi guys. Need a little help with configuration. I'll describe my CURRENT config :



1st communication room Stack of

MS225-48 port 49 uplink port from master

MS225-24 port 25 uplink from slave

PORT 52 and PORT 28 aggregated



2nd room

MS225-48 port 51,52 aggregated



51 going to port 28 (1st communication room)

52 going to port 52 (1st communication room)



I'm about to add another MS225-24 to 2nd room (Will be stack with MS225-48)



Now the question is how im doing the aggregation correctly after i'll add another switch



NOTE: I have only 2 optic cables coming from 1st communication room to 2nd



Hope i was clear. Thanks !

1 Accepted Solution
AjitKumar
Head in the Cloud

Hi @Kirillg88

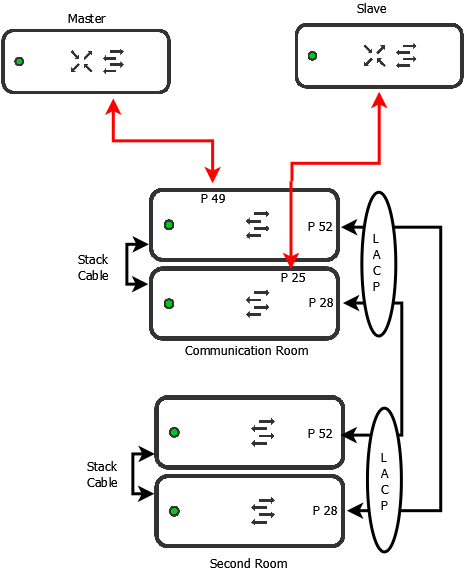

With my Limited Knowledge I can think of following Connectivity.






May be @kYutobi can suggest mistakes in this diagram.

Regards,
Ajit
AjitsNW@gmail.com
www.ajit.network

View solution in original post

10 Replies 10
kYutobi
Kind of a big deal

If my understanding is correct you're just adding another switch to the 2nd room. Wouldn't you just uplink the new switch from the MS225-48 port 51,52 aggregated? It's already set unless you're doing something different.

Enthusiast
Kirillg88
Here to help

Yes , im just adding another switch and i'll make a stack of 2 switches . How should i uplink the new switch from the MS225-48 port 51,52 aggregated if both of them connected to aggregated ports in 1st server room. Should i take 1 link to the new switch ? Then aggregate ports on the new switch and connect to 1st room ?



For example :

2nd room

MS225-48 port 51,52 aggregated port 51 to port 27 , port 52 to MS225-48 port 52 (1st room)

MS225-24 port 27,28 aggregated port 28 to MS225-24 port 28 (1st room)





kYutobi
Kind of a big deal

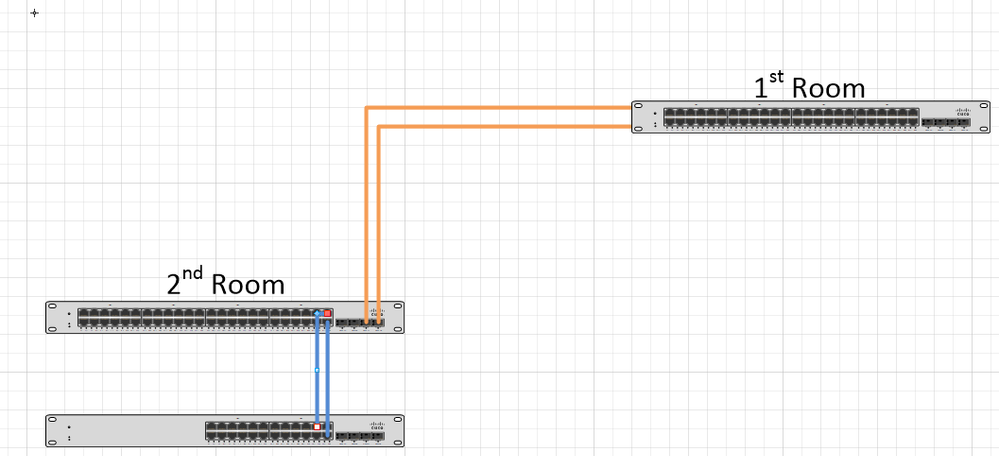

Here's an example. You don't need to have 2 cables on 24 port switch lol I added just because.










Enthusiast
AjitKumar
Head in the Cloud

Hi @Kirillg88

With my Limited Knowledge I can think of following Connectivity.






May be @kYutobi can suggest mistakes in this diagram.

Regards,
Ajit
AjitsNW@gmail.com
www.ajit.network
Kirillg88
Here to help


@AjitKumar wrote:

Hi @Kirillg88

With my Limited Knowledge I can think of following Connectivity.






May be @kYutobi can suggest mistakes in this diagram.


Thats exactly how i thought to do it , but wasnt sure if it's the right way

kYutobi
Kind of a big deal

That way is correct for redundancy. I just wasn't sure if you wanted to change your current config. @AjitKumar thanks. @Kirillg88 wasn't sure if you were going to stack the switches together in 2nd room which I should've asked.

Enthusiast
Kirillg88
Here to help


@kYutobi wrote:

That way is correct for redundancy. I just wasn't sure if you wanted to change your current config. @AjitKumar thanks. @Kirillg88 wasn't sure if you were going to stack the switches together in 2nd room which I should've asked.


Yes , i have mentioned that im going to stack them 😉

kYutobi
Kind of a big deal

@Kirillg88 Oh my! I did read over it. 😔 So sorry. Thanks again @AjitKumar😁

Enthusiast
Kirillg88
Here to help

Thats ok, thanks a lot anyway 🙂

Juanf574
Here to help

on another note:



I just go a new MS225 switch and created a port aggragate group. does anyone know how to undo do it?



thank you
