Client VPN not working on MX67

SOLVED
Here to help

Client VPN not working on MX67

Hello Everyone,



I am trying to set up client VPN and have not seen any success with it. My setup is as below:



------------------

| INTERNET |<-------->DLINK      G225<----->MX67<------>MS120-8LP

------------------              BRIDGE MODE



I have checked all the settings, however, the issue is that I do not see any traffic over ports 500 and 4500 coming in on MX67 in Packet Captures.



ISP in question is Aussie Broadband.



Can someone please advise on what can be done further?



Warm Regards,

Tajender



1 ACCEPTED SOLUTION

Accepted Solutions
Meraki Employee

Re: Client VPN not working on MX67

@rock3t_singh When you see the public IP and the WAN IP being different, that means your traffic is getting NATTED upstream, even though you have a public IP assigned to your MX. I strongly believe the router with the 100.x.x.x address blackholing the client VPN traffic.



To get further clarification, you can try what is my IP in google and if you see 100.x.x.x, then please give your ISP a call and ask them why your traffic is being NATTED upstream when you have a public IP and also ask them to port forward UDP port 500 and 4500 to the MX for client VPN connection. Once this is done, you need to configure your client VPN for the public IP of 100.x.x.x. since port forwarding is enabled on the 100.x.x.x router, the traffic will be forwarded to your MX and client VPN negotiation will happen.

If you found this post helpful, please give it kudos. If my answer solved your problem, click "accept as solution" so that others can benefit from it
15 REPLIES 15
Kind of a big deal ww
Kind of a big deal

Re: Client VPN not working on MX67

did you configure the dlink for this vpn service?

Here to help

Re: Client VPN not working on MX67

The DLink us in bridge mode already. I believe it is not blocking anything as the firewall would be completely transparent in bridge mode. Is there any other configuration that needs to be done on it?

Highlighted
Building a reputation

Re: Client VPN not working on MX67

I have a DMZ setting on my home router. From what I understand, when enabling this, and setting the DMZ address, what ever client with that address is in the DMZ of my home router and therefore free of any firewalling.

I couldn’t get my MX to register in the cloud, and a call to my friendly neighbourhood ISP, confirmed my suspicion.

My MX was being firewalled, even though it was put in DMZ. And this was working by design.



So, take a look at your DLink, and verify it isn’t firewalling your MX. And afterwards try adding the Meraki Firewall info, that is required for Cloud communication.

Here to help

Re: Client VPN not working on MX67

The D-Link router is in bridge mode and is not getting any WAN IP. The MX is getting public IP.



@rbnielsen in your case, seems like your MX is getting private IP allocated by ISPs router.

Kind of a big deal

Re: Client VPN not working on MX67

What error message is the client getting reported?  Anything appearing in the Network-Wide/Event log when a user tries to connect?



Check out the client VPN trouble shooting guide.

https://documentation.meraki.com/MX/Client_VPN/Troubleshooting_Client_VPN

Kind of a big deal

Re: Client VPN not working on MX67

At a guess even though the D-Link is in bridge mode that model is a consumer grade modem and is probably doing something silly with VPN traffic.

Meraki CMNO, Ruckus WISE, Sonicwall CSSA, Allied Telesis CASE & CAI
Here to help

Re: Client VPN not working on MX67

I am getting error 789 on windows clients and I have followed the troubleshooting steps. However, that didn't yield anything.



When I look at Uplink for my MX, I see a public IP and a WAN IP and both are different. Public IP is 180.x.x.x whereas the WAN IP is 100.x.x.x. I can ping the public IP from other hosts, but cannot ping the WAN IP. When I do a packet capture with a continuous ping to 180.x.x.x IP address, I do not see any traffic coming in to my MX even though the ping is successful. The ping to 100.x.x.x anyways fails and is not logged in the pcap.



I tried to capture all the icmp traffic with continuous ping to both the ip's running from a PC sitting on internet via 4G/LTE. the only ICMP traffic that I could see was requests being sent to 8.8.8.8 and replies received from it.









Ben
A model citizen

Re: Client VPN not working on MX67

@rock3t_singh

Perhaps traceroute outside from behind your MS120 and see which route it follows outside.

OR

Are u able to ping your dynamic hostname of your MX? You can find it under Appliance Status -> Hostname

It should be visible under your WAN1 ip.



If this does respond, configure your VPN with the DDNS.





Here to help

Re: Client VPN not working on MX67

The hostname resolves to 180.x.x.x IP and I am able to reach it from outside.



Still, I do not see any icmp packets hitting the internet interface when I do a packet capture.

Meraki Employee

Re: Client VPN not working on MX67

@rock3t_singh When you see the public IP and the WAN IP being different, that means your traffic is getting NATTED upstream, even though you have a public IP assigned to your MX. I strongly believe the router with the 100.x.x.x address blackholing the client VPN traffic.



To get further clarification, you can try what is my IP in google and if you see 100.x.x.x, then please give your ISP a call and ask them why your traffic is being NATTED upstream when you have a public IP and also ask them to port forward UDP port 500 and 4500 to the MX for client VPN connection. Once this is done, you need to configure your client VPN for the public IP of 100.x.x.x. since port forwarding is enabled on the 100.x.x.x router, the traffic will be forwarded to your MX and client VPN negotiation will happen.

If you found this post helpful, please give it kudos. If my answer solved your problem, click "accept as solution" so that others can benefit from it
Here to help

Re: Client VPN not working on MX67

In google it shows my ip as 180.x.x.x and not 100.x.x.x.



I am also able to ping 180.x.x.x ip from internet.

Meraki Employee

Re: Client VPN not working on MX67

Interesting! If you are seeing 100.x.x.x as the public IP on the dashboard, that means the Meraki dashboard is seeing traffic coming from this appliance with that IP. Definitely, something funky is going on with NAT upstream (probably only for certain routes and not all as we are seeing 180.x.x.x as public from a client behind MX)



That being said, since we are not able to ping 180.x.x.x from your computer, can you do a traceroute from your computer to 180.x.x.x and see where it is getting dropped? Also, it's worth connecting to a different ISP on the client side to check if it will make any difference





If you found this post helpful, please give it kudos. If my answer solved your problem, click "accept as solution" so that others can benefit from it
Here to help

Re: Client VPN not working on MX67

@Raj66

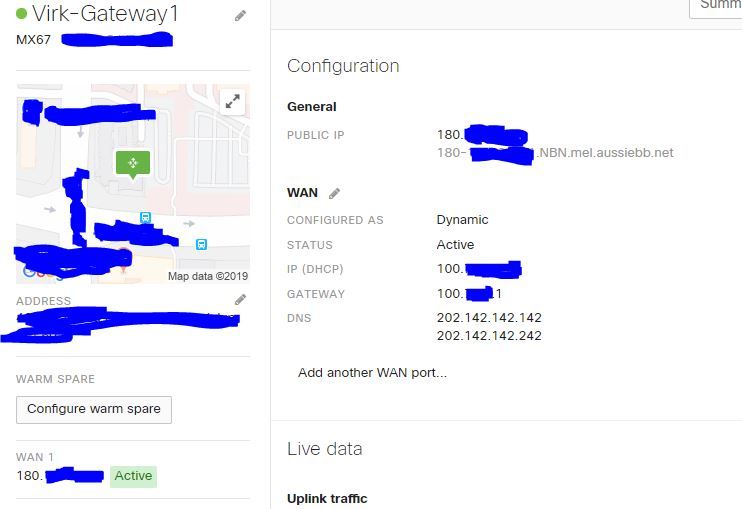

I see the WAN1 IP and Public IP as 180.X.X.X whereas the IP on the WAN interface is different. Please see the attached screenshot.




Here to help

Re: Client VPN not working on MX67

Thanks a lot for all the advise and help, finally managed to fix it.



Apparently turned out that the ISP in this case (Aussie Broadband) uses CG-NAT (https://www.aussiebroadband.com.au/support/knowledge-base/nbn/cg-nat/). Got on a call with them and opted out of CG-NAT and everything came on track.

Meraki Employee

Re: Client VPN not working on MX67

Are you able to ping the public IP on the MX from your computer?

A good way to check if UDP 500 and 4500 traffic (needed for client VPN) is getting blocked upstream or not is to take a packet capture on the Internet interface of the MX and do a continuous (ping -t x.x.x.x) from your computer  and try to connect over client VPN simultaneously. If you see only ICMPs in the capture and not UDP 500 and 4500 traffic then it is getting blocked somewhere upstream and it is time to give the ISP a call.

If ping is also not working, a traceroute will give us a pretty good idea about where it is failing.

If you found this post helpful, please give it kudos. If my answer solved your problem, click "accept as solution" so that others can benefit from it
