I found a need to create a portable WIFI solution that is easy to setup, easy to take down and only needs AC power and reliable cellular service. The use case is for temporary events, both indoors and outdoors, where WIFI is needed for devices like Point-Of-Sale registers, digital tickets, digital signage and general internet access. Some of the possible events are farmers markets, little league tournaments, food truck courts and golf tournaments.


I used some off-the-shelf television antenna tri-pod mounts and masts as the platform to mount the equipment on.

They are cheap, light-weight, durable and easy to transport.


Base stationBase station


I needed a water proof enclosure to house the PoE switch. I used a Ventev climate controlled cabinet that I had from another project. The cabinet has an AC outlet built in along with a small fan to vent it. I removed the heating element from the cabinet as the switch will keep it warm. I used an APC surge protector to provide some power protection for the electronics. I used a small, cheap, unmanaged, 8 port 100 megabit PoE+ industrial grade network switch. The switch also has a single gigabit non-PoE port. I would have used an 8 port MS120 switch, but I was concerned about it's environmental specifications and size. The other Meraki devices provide plenty of visibility into the local network.


Inside the Base StationInside the Base Station


I had an extra MT10 Temperature and Humidity Sensor that I put in the cabinet. The fan is drawing heat from the cabinet out of the top inlet. This means ambient air is being drawn in to the cabinet from the bottom inlet. So the MT10 is measuring the outside air temperature and humidity. So this system also functions as a rather expensive weather station too.

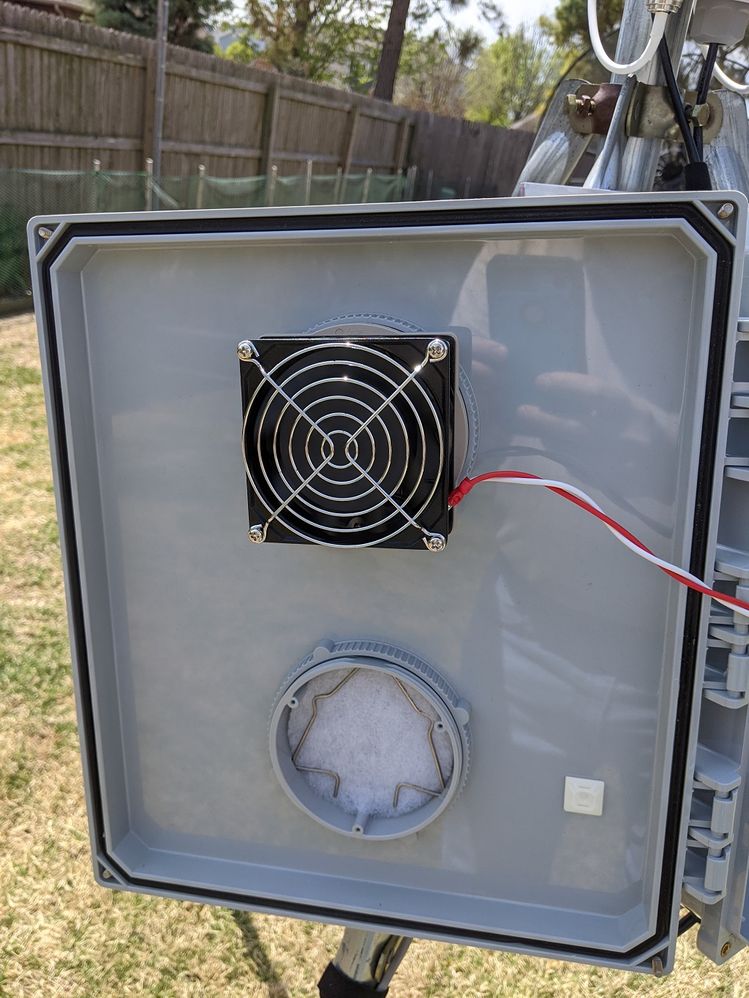

Base Station fan and air filtersBase Station fan and air filters


I installed a small outlet box on the bottom of the cabinet and used a 6 port RJ45 plate for it. I wired one of the ports (blue jack) to the gigabit port and 5 more ports (white jacks) to the 100 megabit PoE ports. This is the only part of the project that is not weather-proof. The gigabit port could be connected to a local broadband internet circuit if it were available. I do not plan to the leave the system out in the weather for extended periods of time, so this was an acceptable solution.


Network portsNetwork ports

I choose to go with the external network ports so that it would be easy to connect and disconnect network devices to the base station without having to open the cabinet. The network jacks and wire are all Category 6, although 5E would work too.


MG21E Cellular GatewayMG21E Cellular Gateway


I installed a Meraki MG21E Cellular Gateway on top of the base station to provide internet access. When the new Starlink satellite internet service is available, I could remove the MG21E and install the Starlink dish on top of the poll.


MR86 Wireless Access PointMR86 Wireless Access Point


I used a Meraki MR86 WIFI 6 Outdoor Wireless Access Point for the WIFI access. I realize the MR86 is overkill for this project and the MR76 would be a better choice, but the MR86 APs were in stock and the MR76 APs were not.

An MR70 AP would also be an even cheaper option.


Ventev Wireless Patch AntennaVentev Wireless Patch Antenna


I went with the Ventev micro patch antenna to direct the wireless network coverage towards a specific area. All four leads are dual band and the antenna is much smaller and cheaper than a pair of the Meraki patch antennas. The patch antenna could also be replaced with an omni-directional dome antenna for a wider coverage area.


Secondary AP for additional coverageSecondary AP for additional coverage


I setup an additional station to provide better coverage for larger events. It draws power and internet from the base station. I used the same AP and antenna for it. I can theoretically run four of these from the base station, as long as they are within 300 feet or so. I could also power the additional stations with a PoE injector and rely on the Meraki Wireless Mesh access to.


I added some firewalls rules to the wireless SSID to block bandwidth consuming services like file-sharing, peer-to-peer and web advertisements. I used traffic shaping to limit the wireless users to two megabits of bandwidth. This should be sufficient for most users and allowances can be made if more bandwidth is needed.


You can grant access to the wireless network through multiple different methods. My favorite one to use is Facebook authentication. The wireless users have to "like" you business or organization page in order to use the wireless network.


I hope you enjoyed this project post!
