[WINNERS ANNOUNCED] Community Challenge: the Unfinished Deployment

MeredithW
Community Manager

Screen Shot 2019-06-07 at 12.18.56 PM.png



UPDATE: We have our winners! After carefully comparing your submissions to our answer key (shown below), we entered those who provided all 16 correct answers into a random drawing. The randomly selected winners are... @RomanMD and @Chip



🎉  Congrats and thanks again to all who participated 😀



Answer Key:

List – Floor Spots

A. MT12

B. MT20

C. MT20

D. MT12

E. MT10

F. MT12

G. MT12

H. MT20



List – Ceiling Spots

I. MV32

J. MT10

K. MR46

L. MT10

M. MT10

N. MR46

O. MV22

P. MR46



UPDATE: Submissions for this challenge have closed. We were so thrilled to see 80 submissions! Stay tuned for an announcement of the winners.



This month’s community challenge is brought to you by our illustrious Training Evangelists @SandroNardi and @RafaelM! The ACME Corp is in a bind and needs YOUR help with their Meraki deployment. Read through the problem below to determine where to put their new Meraki gear. Submit a correct answer before the deadline and you could win some sweet swag!



ACME IoT Challenge

After a successful proof of concept (aka “PoC”) in a different location, ACME Corp has decided to install Meraki equipment in their on-prem data center. A few sensors from the PoC are already installed in the racks labeled as ‘DB’, but they have no gateways to connect to at the moment (☹ very unhappy sensors).

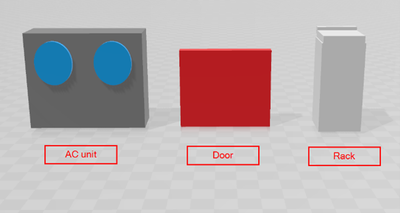

Whoever oversaw the design has mysteriously disappeared, leaving no trace behind except for 2 diagrams with some highlighted spots and a list of cryptic requirements, perfectly in time for our February community challenge!



ACME has already approved the design but, without an accurate list of materials, they cannot purchase the devices. They also don’t know where to install them.



Your mission: look carefully through the “list of requirements” and come up with a proposal for which devices need to be installed at each of the spots labeled on the diagrams below.



The Meraki Dashboard account already has the exact number of licenses required to cover the datacenter deployment for 3 years:

  • 11x LIC-MT-3Y
  • 2x LIC-MV-3YR
  • 3x LIC-ENT-3YR










List of requirements

  • Each spot on the map must contain 1 device and only 1 device
  • Cameras are required to monitor each door from inside
  • 1 Fisheye camera is enough to monitor both doors that allow access to the ‘Main Area’ from outside
  • Spots J, M, L must contain a temperature & humidity sensor
  • Desk space inside the datacenter needs to be monitored for quality of living (temperature and humidity) at the desk level
  • Every time a door is open, an email alert needs to be sent to the datacenter administrators
  • Wifi coverage is required in both areas (‘Main Area’, ‘Restricted Area’)
  • 2 APs are required to cover the ‘Main Area’
  • All AP’s needs to be WIFI 6 4x4 on 2.4 GHz and 5 GHz with internal antennas
  • AC units might cause leaks in their proximity, an alert needs to be raised to the on call support engineer when a water leak is detected
  • Each Rack labeled “DB” already has a dedicated temperature sensor installed inside the rack, 1 open/close sensor installed on the front door and 1 open/close sensor installed on the rear door
  • APs and Cameras must be mounted on the ceiling.
  • Sensors-to-gateways ratio must be always within the manufacturer recommended limits
  • Assume that the distance between any 2 spots in the map is less than the minimum distance required for Bluetooth sensors to correctly communicate with a gateway
  • At least 1 AP is required to cover the ‘Restricted Area’
  • In the ‘Restricted Area’ the camera must be an MV22 placed as close as possible to the door

How to enter

Provide a list of all the device names and models for each spot in the map as a comment on this post (comments will remain hidden throughout the challenge):

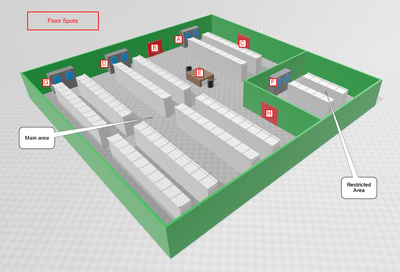

-Floor Spots

A. ___

B. ___

C. ___

D. ___

E. ___

F. ___

G. ___

H. ___

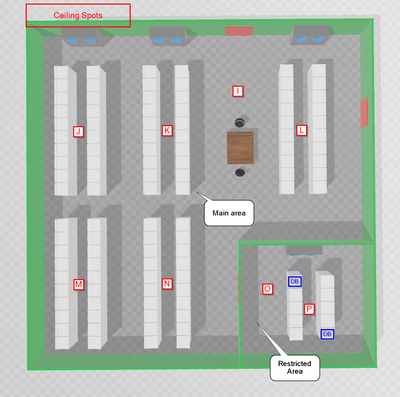

-Ceiling Spots

I. ___

J. ___

K. ___

L. ___

M. ___

N. ___

O. ___

P. ___



Everyone who submits the correct list of devices before March 2nd, 2021 at 11am PST will entered to win one of two Meraki shirt and sunglasses pairings:






How to win

There will be two winners for this challenge. In order to win, you must have provided all 16 correct device names in their correct locations. In the likely event that multiple submissions contain all 16 correct answers, we will randomly select 2 winners from that group of respondents. Winners will be announced shortly after submissions are closed!



The Fine Print

  • Limit one entry per community member.
  • Submission period: Tuesday, February 23rd, 2021 at 11am PST through Tuesday, March 2nd, 2021 at 10:59am PST
  • Prize will be a selection of Meraki swag with value not exceeding USD 50.00
  • Official terms, conditions, and eligibility information
