Meraki MX68W integration with Cisco Umbrella

[Tariqmahmood]

Hi,

 I am trying to integrate Cisco umbrella to my network with MX appliance. I have generated the key and secret in Cisco umbrella and added to Network-wide-->general-->Cisco Umbrella account.

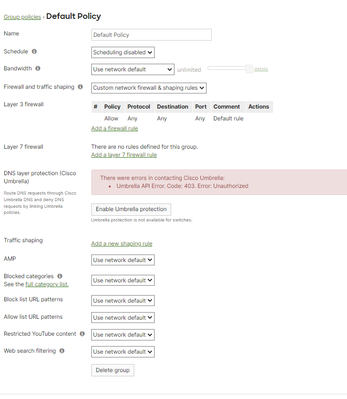

After doing above step, then i have tried to enable umbrella protection but got error. I am not able to identify how to fix this one, any idea? I dont see any IP restriction from MX side that makes it unauthorized to connect to Cisco umbrella.

[alemabrahao]

Check the documentation, you're probably forgetting something.

https://documentation.meraki.com/General_Administration/Cross-Platform_Content/Manually_Integrating_...

[alemabrahao]

Umbrella API is configured on a per netwowrk basis.

Just go to "Network -> General" within your MX protected network, delete the API credential (on the bottom of the page) and you should be good to go setting it up using the correct key..

[Tariqmahmood · Accepted solution]

@alemabrahao I had a call with Cisco umbrella support and found out with basic license package i cant integrate Meraki appliance with umbrella. License upgrade needs to be done for integration to be working.
