Meraki MX , Disable NAT On WAN For Private MPLS connectivity

[Pwellion]

Hi There

Looking to replace a customer who has a Pair of firewalls (Checkpoint) connecting into their MPLS WAN in an active/standby HA configuration. For reference these existing Checkpoints do very little part from some basic FW rules.

The Checkpoints are not NAT'ing traffic and are effectively acting as routers.

I need to ensure that a pair of Meraki  MX appliances operating in HA can replace the Checkpoints. I gather that:

1. I need to log a support ticket with Meraki for them to enable the NAT Exempt feature on WAN
2. Obviously need to ensure that the WAN subnet can communicate with Meraki Cloud

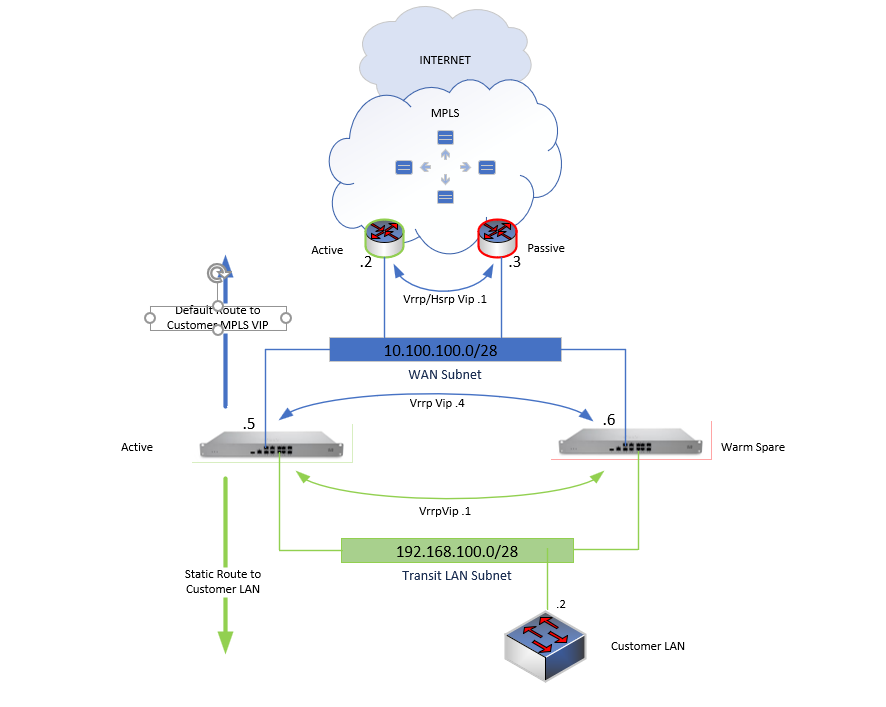

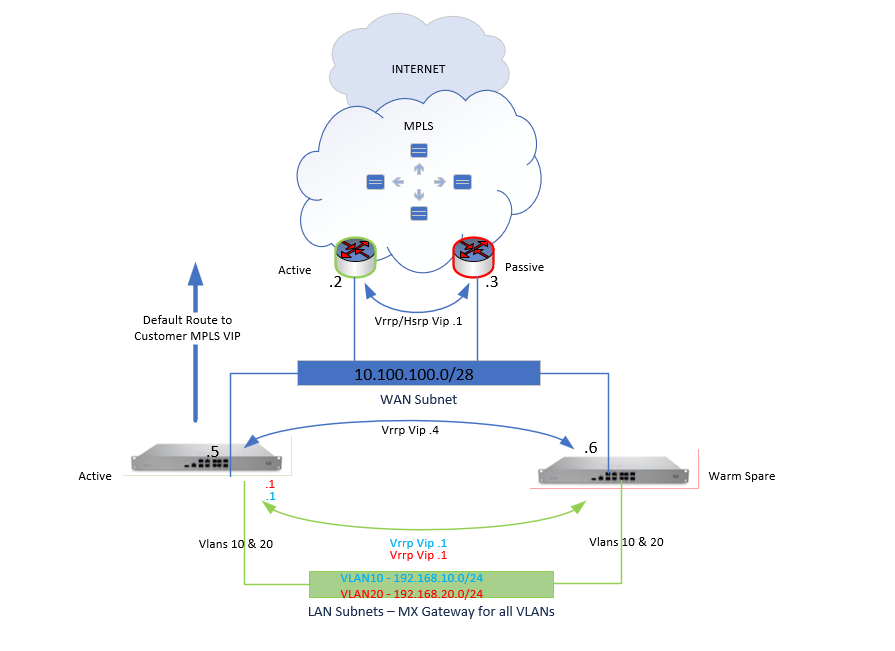

I've attached 2 diagrams. First Diagram has the Meraki with a transit LAN and the second has all internal VLAN Gateways terminating on the MX LAN. I assume both are supported and from what I gather there is only a requirement to configure IP addresses and VRRP VIP on the WAN links and just a singe IP per Subnet on the LAN side.

Is the WAN NAT Exemption fully supported (I'm a little dubious to recommend a solution that relies on having to ask support to enable such a basic feature)?
What are typical failover times (based on real world examples)

See attached options.

Any feedback greatly appreciatedOption 1 - Transit LANOption 2 - VLAN GW

[Brash]

Both options here should work. One advantage of using the MX for VLAN gateways is that you can filter inter VLAN traffic with firewall rules.

As for No-NAT, it's definitely a supported option which a lot of people use in MPLS environments. It's now an Early Access feature in the dashboard and so no longer requires a support ticket to enable.

[Pwellion]

Great that's a relief. Any experience of failover times with regards to MX running in an HA pair. I've read various resources that indicate this is not always as smooth as expected?

[Brash]

I've only worked with HA pairs as VPN Concentrators in the datacenter and have never had an issue with failovers there.

One thing a lot of people overlook is that the timings for failover vary depending on the failure scenario.

In the event of a soft failure (outbound HTTP and ICMP tests fail but the physical link remains up), the failover time can take around 5 minutes.

In the event of a hard failure (the physical link goes down), the failover is pretty much immediate (<5 seconds).

Some resources that explain the difference are below.
 https://documentation.meraki.com/MX/Firewall_and_Traffic_Shaping/Connection_Monitoring_for_WAN_Fail...
Re: MX Circuit Failover timing - The Meraki Community

[Pwellion]

Thanks, sorry on that note is there an option to configure inbound fw rules to control traffic from the wan/other private sites?
