Meraki MX-250 HA building issue

[Yash_03]

Hi Folks,

Can some one pls help out here??

I have implemented a new setup in one of our offices where i've deployed MX-250 security appliances as firewalls. During the implementation, i encountered an issue with establishing HA connectivity between the 2xMX-250 devices. Our office has two ISP connections, so i configured ISP1 subnet 113.X.X.234/29 on the MX-A WAN1 interface and ISP2 subnet 154.x.x.85/29 on the MX-A WAN2 interface. Similarly, i configured the same IPs on MX-B, but it is showing a duplicate IP address error. I don't understand why the same IPs of both WAN1 and WAN2 interfaces can't be accepted if we are configuring the two MX devices in Active-Passive mode.

Additionally, I tried configuring MX-warm spare with VIP for each ISP, but I still encountered the same error. The status of both MX devices is showing an orange indication, even though their WAN IPs are pinging from the internet. I'm not sure which device is responding to the ICMP requests.it would be great help if someone can help me in this scenario.

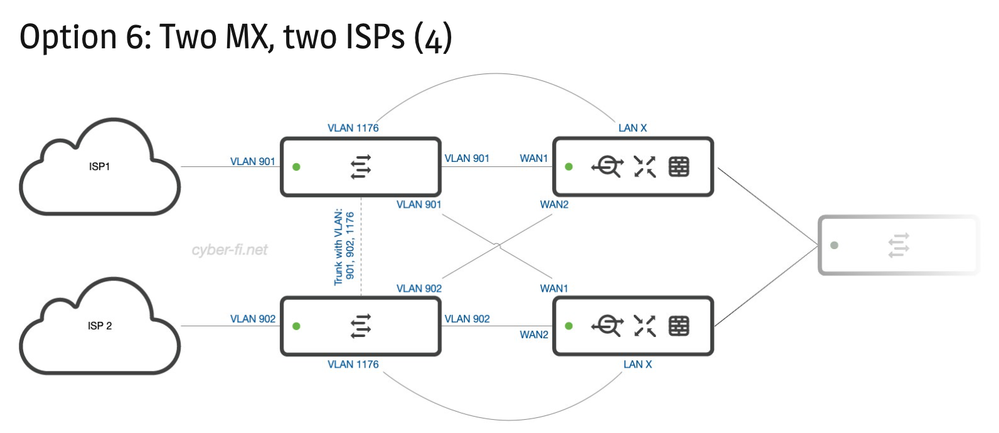

I have attached topology for understanding the setup.

Thanks!!

[DarrenOC]

Hi @Yash_03 , whilst theyre Active / Standby youll need to configure a separate external IP for each connection on each MX

[Yash_03]

Hi @DarrenOC ,

Thanks for prompt response,

You mean to say All 4 WAN interface (MX-A&MX-B) should have different physical ip address and same VIP address.

[DarrenOC]

WAN 1 - 113.1.1.234 MX A

WAN 1 - 113.1.1.235 MX B

WAN VIP - 113.1.1.236

Would look something like this

[DarrenOC]

So youll require 3 IPs per subnet (6 in total)

[Yash_03]

Got it @DarrenOC ✅

I hope this will solve my problem. Appreciate your response here!!!

[DarrenOC]

Not a problem. Appreciate it takes a large chunk of external IPs but it’ll work.

[Yash_03]

Hi @DarrenOC ,

I implemented the workaround you shared, and it worked successfully. I'm just curious about the incoming and outgoing traffic. Which IP is being used for inbound and outbound traffic: the VIP or the physical IP?

[van604]

everything should coming in/out on the VIP

[DarrenOC]

Hi @Yash_03 , as per what @van604 says- the traffic will come from the VIP.

Could I ask that if the issue has been resolved you mark this post as “Resolved”. Cheers
