MX65 Connected Devices Upstream

SOLVED
Getting noticed

MX65 Connected Devices Upstream

Hi,



I have a MX65 with two Meraki ms120p connected.



When I go to the topology page it doesn't tell me which port the switches connect into on the MX65. It tells me port x/xx on the switch but doesnt actually say the physical port number on the MX.



Maybe i'm looking in the wrong menu? Make a wish?



1 ACCEPTED SOLUTION

Accepted Solutions
Kind of a big deal

Re: MX65 Connected Devices Upstream

Alas only the switches report the specific port that a device is connected to.

4 REPLIES 4
Kind of a big deal

Re: MX65 Connected Devices Upstream

Alas only the switches report the specific port that a device is connected to.

Getting noticed

Re: MX65 Connected Devices Upstream

Bugger, thats two big wishes.



Descriptions for MX ports and full CDP information.

Getting noticed

Re: MX65 Connected Devices Upstream

+1 on those two wishes. I've put these in before to Meraki

Getting noticed

Re: MX65 Connected Devices Upstream

Hey @benny

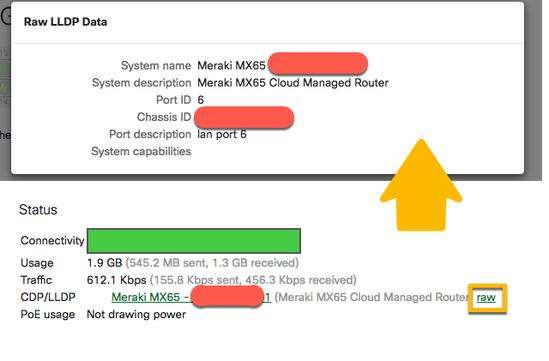

If you really need to find what port the switch is connecting with on MX you can get it from the raw LLDP data information on the switch ports.



1) Select your switch

2) Look for and select the Meraki worm symbol indicating the MX is connecting to it.

3) Clock "raw"

4) Look at the port ID.
