MX Warm Spare HA support with differing WAN/LAN speeds/Ports

[Pwellion]

Hi There

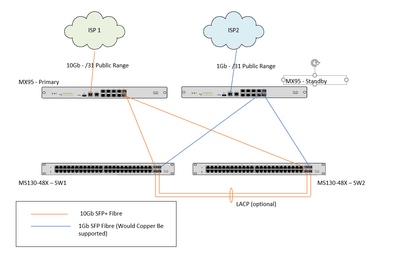

Just wondering if someone could confirm is the below topology is supported. I have a client with 2 Independent ISP circuits delivered as /31s public ranges

Circuit 1 is on a 10Gb Bearer capped at 2Gb/s and Circuit 2 is a 1Gb bearer @1Gbs

Looking at the HA guide MX_Warm_Spare_-_High_Availability_Pair I cannot see anywhere where is specifies that the interfaces need to match on the MXs configured as a HA pair (unless I missed it). Only that VRRP is required across the LAN

Based on this, as only one circuit runs at 10Gb, could I use 1Gb Fibre, or indeed even 1Gb Copper for connectivity (LAN/WAN or both) for the Warm Spare firewall, as the ISP uplink is only 1Gb.

Obviously aware that a better approach would be 2 X /29 with WAN switches, to allow 2 X VIP sharing across both ISPs, but for now this is not in scope.

Appreciate any comments, thanks

[Ryan_Miles · Accepted solution]

Yep, totally doable. As you stated you can't do a VIP on the WAN without the extra IPs. But basic HA will work fine.

[Pwellion]

Hi Ryan, so theoretically to save even more I could indeed use Copper for all ports on the warm spare  that would be handy.
