SecurePort

[PhilipDAth]

The SecurePort documentation could do with a refresh.

https://documentation.meraki.com/MS/Access_Control/SecurePort_(formerly_known_as_SecureConnect)

Are the C9300s supported?  What about the MS130X switches?

Is it possible to tell from the dashboard if SecurePort has "kicked in"?

[PhilipDAth]

This post has some information about how to monitor SecurePort from the dashboard (which would be good to get incorporated into the documentation):
https://community.meraki.com/t5/Feature-Announcements/New-name-same-great-feature-MS-and-MR-SecurePo...

[Ryan_Miles]

@PhilipDAth  As far as I know the list of supported Switches in the doc is accurate today. There are plans to bring more functionality to the C9300-M. Not sure if it will come to the MS130 family.

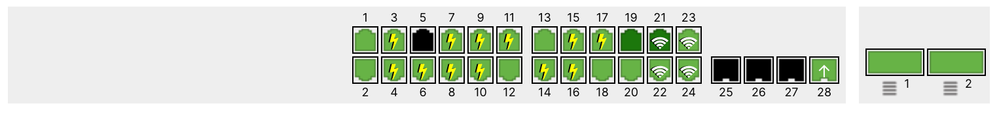

As for how SecurePort looks in dashboard. When a switchport has successfully authenticated a Meraki AP it will show a Wi-Fi bars icon on the port. If it fails to auth the AP the port still shows the Wi-Fi icon, but the port would be red. I don't recall if there's a state in which it would be amber. I'm not finding any failing ports in my searching to confirm.

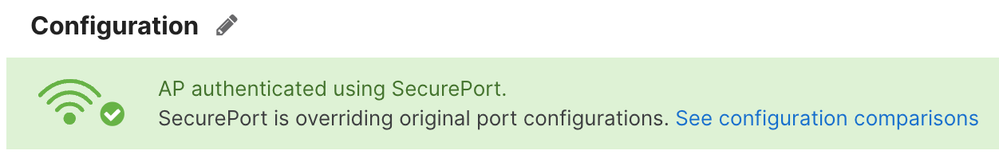

Clicking on the switchport will show you that it's been authenticated by a SecurePort profile.

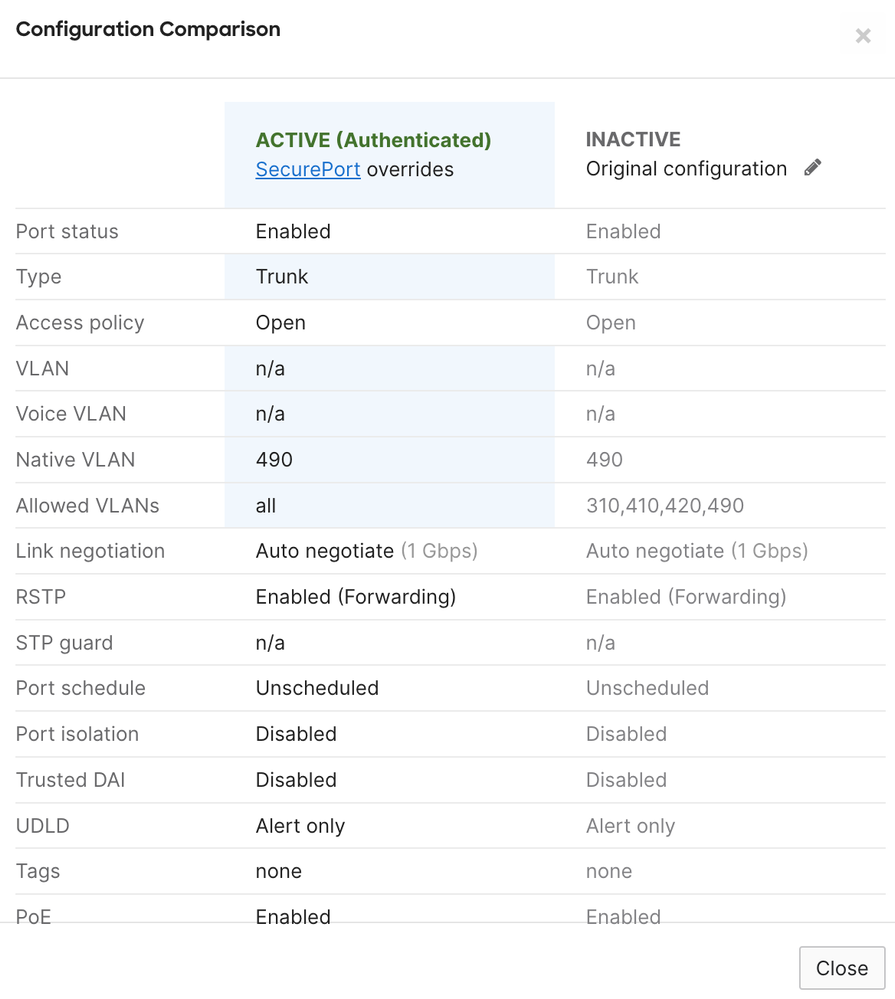

And clicking on the config comparisons link will show more detail.

I agree with you that adding screenshots like this to the doc might be helpful. Thanks for the suggestion. I'll forward it along to the doc folks.

[KH]

Hey @PhilipDAth

To close the loop here, I have updated the KB with screenshots of the different states/errors to make it more clear when it has kicked in.
