Default Power Supply for MS250-48FP, MS250-24P & MS425

SOLVED
Noffal
Getting noticed

Default Power Supply for MS250-48FP, MS250-24P & MS425

Hi,



I was ordered for MS250-48FP, MS250-24P & MS425 and want to know what is watt capacity for default power supply that devices? because there are no information about it in Meraki Docs.



And what kind power cord for that power supply? is it C15 or C13 in Switch side?



Thank You in Advance!

1 ACCEPTED SOLUTION

Hi @Noffal



Again, the chassis side of the cable (MA-PWR-CORD-*) is C15. And the inlet on the MX95 chassis side is C14. Not C13. Physical talk can connect.




The C15 connector is designed to connect to the C14 and C16 inlets. IEC standard. There are C14 and C16 models on the Meraki Power supply module side, but the cable (MA-PWR-CORD-*) can be connected to both in common. Since it has been officially verified by Meraki in the first place, the MA-PWR-CORD-* will definitely connect. 3rd Party? Self-responsibility.



Power Cord Types, Power Cable types, Power Plug types | FS Community


A C13 connector cannot be connected to a C16 inlet. Because it is designed to exceed the temperature rating of C13/C14, there is a notch in C13/C14 so that it cannot be inserted because it is dangerous.



Regard,





If you found this post helpful, please give it kudos.
If my answer solved your problem, click "accept as solution" so that others can benefit from it.
有用な回答だと思われる際にはkudoをクリックして頂けると幸いです。
回答があなたの問題を解決した場合、accept as solutionをクリックしてください。

View solution in original post

3 REPLIES 3
Soichiro-Ono
Getting noticed

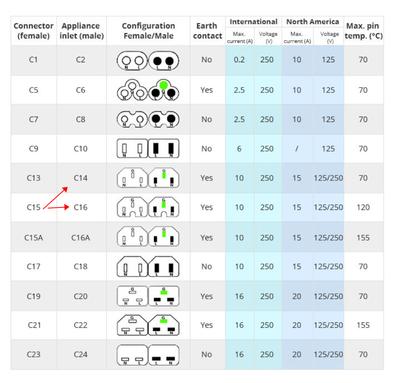

The power cord connector (on the product side) that is validated and supported by Meraki is C15. C15 is not mentioned. Because MA-PWR-CORD-*, which Meraki has verified in-house, can be connected without any special mention. 3rd party cables can also be used, but they are not officially supported nor recommended.SoichiroOno_0-1675322577795.png






MS425: Power module capacity

MS425 Overview and Specifications - Cisco Meraki


MS250: Power module capacity

MS250 Overview and Specifications - Cisco Meraki




Regard,



If you found this post helpful, please give it kudos.
If my answer solved your problem, click "accept as solution" so that others can benefit from it.
有用な回答だと思われる際にはkudoをクリックして頂けると幸いです。
回答があなたの問題を解決した場合、accept as solutionをクリックしてください。

Hi,



As we know the option of meraki power cord is MA-PWR-CORD-*. Its suppose to can use by all variant devices MS/MX?



Because when I check in in here:

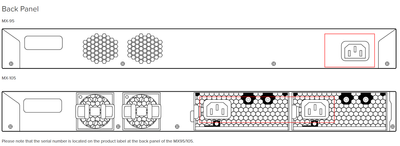

https://documentation.meraki.com/MX/MX_Installation_Guides/MX95%2F%2FMX105_Series_Hardware_Installat...



It seems MX using C13 on the product side.



Thank You!

Hi @Noffal



Again, the chassis side of the cable (MA-PWR-CORD-*) is C15. And the inlet on the MX95 chassis side is C14. Not C13. Physical talk can connect.




The C15 connector is designed to connect to the C14 and C16 inlets. IEC standard. There are C14 and C16 models on the Meraki Power supply module side, but the cable (MA-PWR-CORD-*) can be connected to both in common. Since it has been officially verified by Meraki in the first place, the MA-PWR-CORD-* will definitely connect. 3rd Party? Self-responsibility.



Power Cord Types, Power Cable types, Power Plug types | FS Community


A C13 connector cannot be connected to a C16 inlet. Because it is designed to exceed the temperature rating of C13/C14, there is a notch in C13/C14 so that it cannot be inserted because it is dangerous.



Regard,





If you found this post helpful, please give it kudos.
If my answer solved your problem, click "accept as solution" so that others can benefit from it.
有用な回答だと思われる際にはkudoをクリックして頂けると幸いです。
回答があなたの問題を解決した場合、accept as solutionをクリックしてください。
