VPN Connectivity OK, but Clients Have No Internet Access

[overblower]

Hi All,

There are two separate MX75 appliances in two different locations.

Location D1

• MX IP: 143.161.65.1

• Clients: 143.161.65.0/24

Location D2

• MX IP: 143.161.64.1

• Clients: 143.161.64.0/24



The D1 appliance can ping the D2 appliance.
The D1 appliance can also ping google.com.
The D2 appliance can ping google.com as well.
Clients from D1 and D2 can ping each other.

However, clients connected to the MX ports cannot ping google.com. They cannot reach the internet.

Could you please support us in this case?
Thank you in advance

[RWelch]

Hello @overblower - on Friday you had a post asking how to Block Internet Access but Allow Auto VPN Communication on MX75.  If you happened to implemented the changes suggested, that might be the reason you aren't able to access the internet.

[overblower]

I know, but things have changed. I deleted the group policy.

[RWelch]

Do the clients connected to the MX ports have a "normal" group policy or are they using a group policy that you have created?

[overblower]

The group policy is online for all of them

[alemabrahao]

How are your firewall rules and content filtering configuration?

[overblower]

We also noticed that if another client connects to the MX port and sets its IPv4 settings to "automatic," it gets an IP from the MX and is able to reach the internet.

However, other computers that we configured with a manual IP are able to ping the other location via VPN, but they are not able to reach the internet.

[alemabrahao]

Interesting, in this case validate if gateway, subnet mask and DNS are configured correctly.

[alemabrahao]

Wasn't that exactly what you asked for in that other thread?

I'm confused now. 🤔

https://community.meraki.com/t5/Security-SD-WAN/Block-Internet-Access-but-Allow-Auto-VPN-Communicati...

[overblower]

Yes, but we decided to allow internet access as well. We didn’t apply the policy. So let’s focus on this thread and ignore the other one.

[RWelch · Accepted solution]

 

If you previously assigned a manual custom GP and applied it to select clients, these clients might still be looking for the deleted manual custom GP.

Have you tried to whitelist (allow list) these clients?

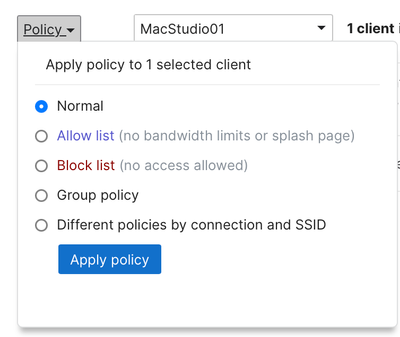

Or you can select them and re-assign the normal profile so they aren't looking for a previously assigned manual custom GP.

[overblower]

After I added these clients to the whitelist (allow list), it worked.

Only one thing is strange:

143.161.64.217 from D2 can ping 143.161.65.50 from D1.

But 143.161.65.50 cannot ping 143.161.64.217.

[RWelch]

I would check each device's group policy and how DNS is configured for each.  @ww provided a good way to see what GP is applied to each device (just below).

[ww]

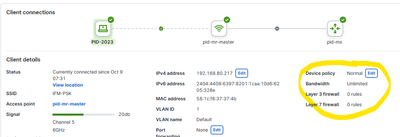

Also check the " show details"  on the client page. It should give you info on what rules are currently used

[RWelch]

And as mentioned already by @alemabrahao checking your gateway, subnet mask and DNS are configured correctly.

I would also encourage you to "double check" how clients are being assigned static / dynamic IPs - meaning have you properly allocated the reserve IP reservations and fixed IP reservations?

These can also come into the equation if not applied correctly.

[PhilipDAth]

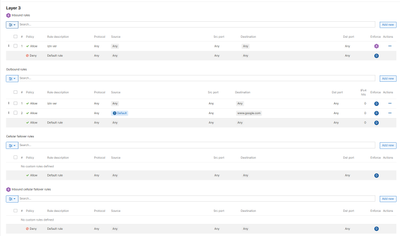

If you click on a client, on the right-hand side, it shows all the firewall rules and policies that are being applied to the user.
