Port forwarding

[SardarAlam]

 Hello Everyone,

Please assist:

i have added some port in port forwarding but the require task still not working i need port forwarding for 3CX server, So user from outside of network will able to use 3cx server for this i need port forwarding. how can i check my local 3cx server ip that port is opened or not.

[KarstenI]

This is best done on the server itself with the tools of the OS.

And you can put your PC into the 3cx VLAN and do a port-scan.

[OVERKILL]

Well, first thing: can you connect to the 3CX server from inside the network? I assume that you can and all works as intended?

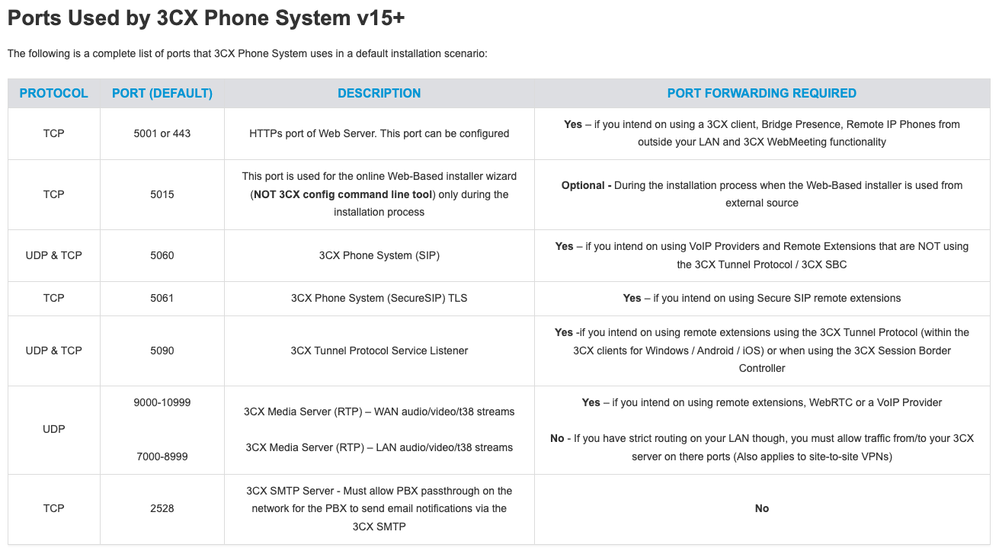

3CX indicates the following ports are used:

The mandatory ones to be forwarded are, depending on what you are connecting (see notes in the table):

- TCP 5001 or 443

- TCP/UDP 5060

- TCP 5061

- TCP/UPD 5090

- UDP 9000-10999

You can configure these on your MX:

Security & SD-WAN -> Configure -> Firewall -> Forwarding rules

[SardarAlam]

Port forwarding is configured same like this.

[Tobih]

What firewall? If your port forwarding is correct but the checker still fails it's usually one of three things:

- Incorrect port forwarding
- SIP ALG is on
- Double NAT or Carrier NAT

[SardarAlam]

How to disable SIP ALG in MX? I believe  the issue is about SIP ALG.all port showing done but 2 things showing fault.

[mxlittletech]

Hi @SardarAlam Please can you guide what was the resolution for this issue ?
