MX SDWAN FIrewall Layer 3 Outbound Rules

[RobChandler]

Hi - Sorry if been discussed before. Is there any way I use an IP range instead of individually putting ip's in.

I know I can create a group which is messy but would rather just be able to block out like above so 10.226.3.10-10.226.3.35.

I know you can use CIDR but not for this range

Am I missing something here???

Thanks Rob

[Mloraditch]

Unfortunately, you are not missing anything. This is what groups are for.

[RobChandler]

So I would have to create a policy object for each IP address in that range, assign them to a group and then and then add the group to the rule??? 2001 wants its firewall rule base back 🙂

[AlexL1]

Hi RobChandler,

Welcome to Meraki Community 🙂

Yes, you are correct.

Option 1 - You can change your Subnet range and add ACLs on the switch to forbit the traffic from the left 4-5 IP addresses to everywhere:

Network Address:	10.226.3.0/27
Usable Host IP Range:	10.226.3.1 - 10.226.3.30
Broadcast Address:	10.226.3.31
Total Number of Hosts:	32
Number of Usable Hosts:	30
Subnet Mask:	255.255.255.224

OR

Option 2 - You should be able to use individual /32 IP address in either the Src or Dest fields:

10.226.3.10/32

10.226.3.11/32

10.226.3.12/32

10.226.3.13/32

10.226.3.14/32

10.226.3.15/32

10.226.3.16/32

10.226.3.17/32

10.226.3.18/32

10.226.3.19/32

10.226.3.20/32

10.226.3.21/32

10.226.3.22/32

10.226.3.23/32

10.226.3.24/32

10.226.3.25/32

10.226.3.26/32

10.226.3.27/32

10.226.3.28/32

10.226.3.29/32

10.226.3.30/32

10.226.3.31/32

10.226.3.32/32

10.226.3.33/32

10.226.3.34/32

10.226.3.35/32

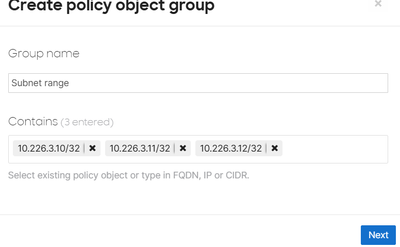

Option 3 - Create policy object group - kind of like a double work, in comparison with Option 2

https://documentation.meraki.com/MX/Firewall_and_Traffic_Shaping/Network_Objects_Highlights

https://documentation.meraki.com/MX/Firewall_and_Traffic_Shaping/Network_Objects_Configuration_Guide

If you have any questions, please don't hesitate to contact us.

If you found this post helpful, please give it kudos.
If my answer solved your problem, click "accept as solution" so that others can benefit from it 🙂

[RobChandler]

Hi Alex

Thanks for confirming - is there any scope for this to be changed? Using a range would so much more beneficial and is a standard feature on basically every other firewall product there is!

Thanks Rob

[JonoM]

We would strongly recommend making a feature request on the Meraki Dashboard as this is our primary method of tracking the requests for future dashboard changes.

[RobChandler]

Hi Jono - I have, I just hope more users do the same

Thanks Rob

[alemabrahao]

You can use a group of objects.

https://documentation.meraki.com/MX/Firewall_and_Traffic_Shaping/Network_Objects_Configuration_Guide
