ECMS Practice Question (日本語) - 9

HitoshiH
Meraki Employee
Meraki Employee

ECMS Practice Question (日本語) - 9

みなさん、こんにちは!



ECMSの練習問題を下記に記載致しますので、ご興味おありの方はチャレンジしてみていただければと思います。

CMSS (Cisco Meraki Solutions Specialist) 認定は、英語以外の言語は現時点ではサポートされておらず、日本語の提供は開始されておりませんが、

下記に英語の練習問題も併せて掲載させていただきますので、みなさまの受験の練習としてご活用いただければと思います。



ECMSの練習問題にご興味がおありの方は、こちらのトピックの下部に適用されている "ECMS 練習問題" のラベルをクリックして、トピックを購読いただければと思います。



[日本語]



下記のイメージはMerakiダッシュボード内のレイヤー2 ネットワーク トポロジー ダイアグラムを示しています。トポロジーについて、下記の内どの記述が正しい内容を示していますか?



  1. トポロジー ダイヤグラムはJPEGフォーマットでダウンロード可能である
  2. 二つのデバイスがオフラインであることを表している
  3. MerakiおよびMeraki以外のデバイスをサポートしている
  4. このトポロジー ダイヤグラムはスイッチ上のデフォルトルート(0.0.0.0/0)を元に構築される
  5. 管理者はカーソルをトポロジー ダイヤグラム上の特定のノードに重ねることで、ノード上に作成されたスタティックルートを確認することができる

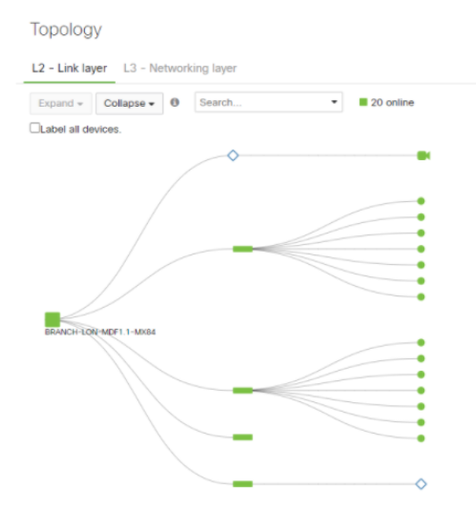

Screen Shot 2021-03-08 at 3.36.39 pm.png



[English]



Look at the image below. It shows a layer 2 network topology diagram inside the Meraki Dashboard. Which sentence is true regarding the topology?



  1. It can be downloaded in JPEG format.
  2. It shows two devices that are offline.
  3. It supports both Meraki and non-Meraki devices.
  4. It is built based on the default routes (0.0.0.0/0) in the switches.
  5. It allows administrators to see static routes for particular nodes by hovering over them.



~~If you found this post helpful, please give it kudos. If my answer solved your problem, click "accept as solution" so that others can benefit from it.~~

The Meraki ECMS exam is now live! Test your knowledge of Meraki and become an official Cisco Meraki Solutions Specialist. More info on the ECMS exam found here.

For information regarding all of Meraki's training offerings, be sure to check out the Meraki Learning Hub.
1件の返信1
HitoshiH
Meraki Employee
Meraki Employee

回答は、"c"となります。

Meraki ダッシュボード上のネットワークトポロジーは、Meraki及びMeraki以外のデバイスをサポートしております。

これはMSスイッチがデータのコレクターとして動作し、CDP及びLLDPで受けた情報を元にトポロジーが描写されるためとなります。

その場合には、同一ネットワーク以外のデバイスは”◇”アイコンにて示され、カーソルを合わせると情報が示されます。
