Infamous Channel 132 - 5GHZ in Canada

Hi ,



I'm trying really really hard to understand why channel 132 in not available in Canada for my MR33/MR36 BUT channels 134 ( 40mhz ) and 138 ( 80mhz ) are available.



How can 134 be available when 132 in not available ? 134 will be using the 132 bands... no ?

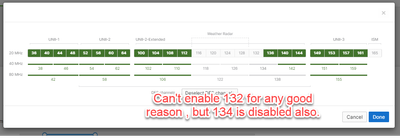

MR33 :

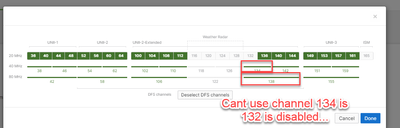

MR36 seems to follow the expected behavior :






2 Replies 2
PhilipDAth
Kind of a big deal
Kind of a big deal

I don't know the answer.



I see channels 120, 124 and 128 are not allowed in Canada (reserved for weather radar).

https://semfionetworks.com/blog/5ghz-regulations-in-canada-2018-update/



Could it be that a 40Mhz channel consumes channels (131,132), and the weather radar can also consume channel 131?  Or perhaps there is some kind of mandated separation?

RaphaelL
Kind of a big deal
Kind of a big deal

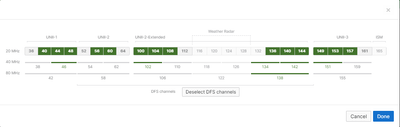

Disabling random 20mhz channels does disable it's associated 40mhz channel. All except for 134... which I don't get at all. And only on MR33s... :




Template , non template , I have tried 'em all.
