Irin04

Hi,

I have two SFP ports configured on VLAN 1 on my MS120-24P switch. Today, I attempted to set up VLAN 4 on one of the SFP ports. After completing the configuration and connecting the target device, it appears to be working. However, for some reason, RSTP is blocking the port, and I’m seeing the following message:
"STP discarding packet from this port.". Any suggetion.

Thank You!

alemabrahao

Is this port in access or trunk mode?

What other device is connected to this port?

I am not a Cisco Meraki employee. My suggestions are based on documentation of Meraki best practices and day-to-day experience.

Please, if this post was useful, leave your kudos and mark it as solved.

Irin04

The port is configured in trunk mode. Another switch are connected to it.

alemabrahao

Can you share a screen of the port configuration on both switches? Please.

I am not a Cisco Meraki employee. My suggestions are based on documentation of Meraki best practices and day-to-day experience.

Please, if this post was useful, leave your kudos and mark it as solved.

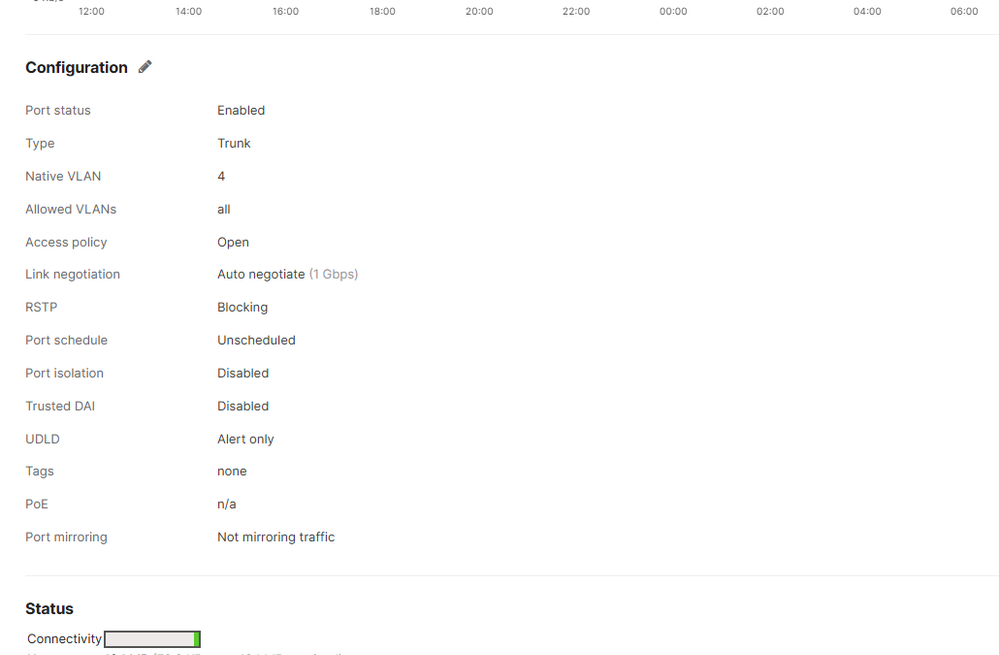

Irin04

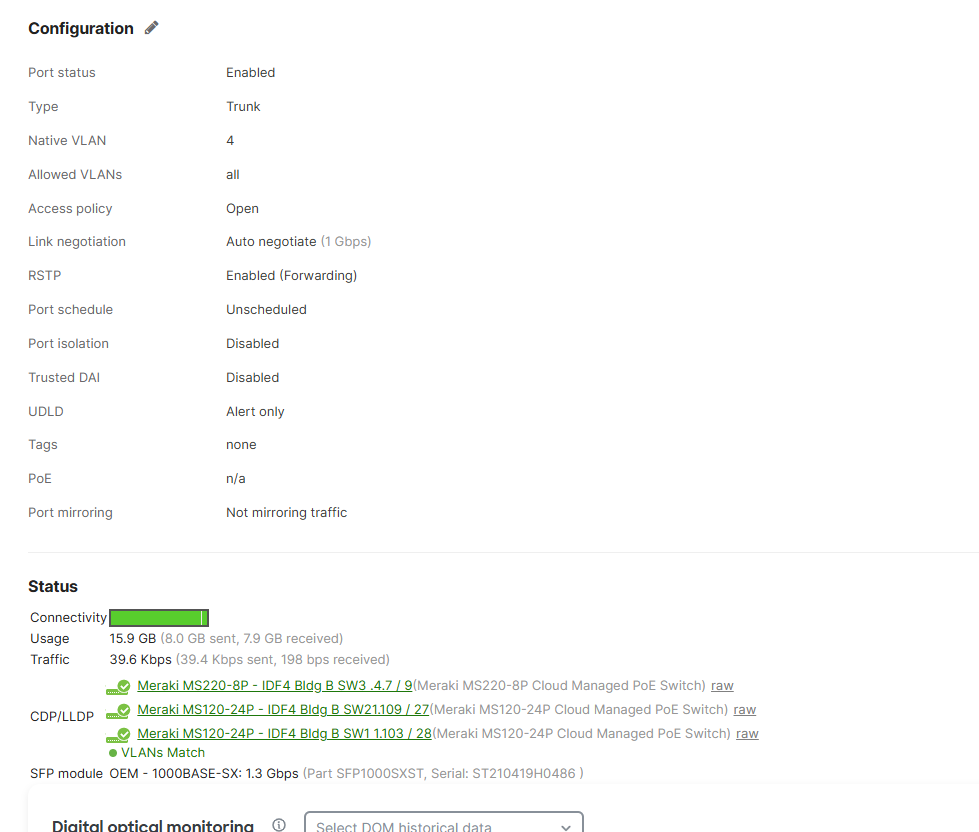

Irin04

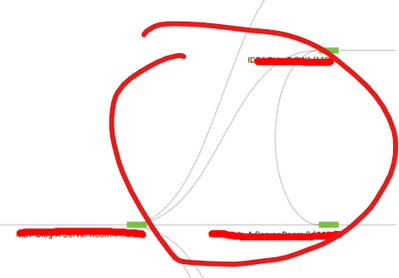

These two switch ports are not connected . One of them has been shut down, but it’s still showing up in the topology. That might be the cause of the issue, but I’m not sure how to resolve it.

alemabrahao

It would be a good idea to double check, as this could be the cause. Is there any chance of physically disconnecting the cable?

I am not a Cisco Meraki employee. My suggestions are based on documentation of Meraki best practices and day-to-day experience.

Please, if this post was useful, leave your kudos and mark it as solved.

alemabrahao

As for the configuration, everything seems to be fine. Do you have any other cables connecting these switches? Because the only explanation I see for STP blocking would be if you had more than one connection between them.

I am not a Cisco Meraki employee. My suggestions are based on documentation of Meraki best practices and day-to-day experience.

Please, if this post was useful, leave your kudos and mark it as solved.

PhilipDAth

This shows you are using a native VLAN of 4. The other end has to match.

With different flavours of spanning tree, I personally think it is safer to use a native VLAN of 1.

RWelch

That message means the port is in an STP “discarding” state (blocking/disabled for user traffic) to prevent a loop.

If you found this post helpful, please give it Kudos. If my answer solves your problem please click Accept as Solution so others can benefit from it.

RWelch

Can you share a snapshot of your topology?

Network-wide > Monitor > Topology

If you found this post helpful, please give it Kudos. If my answer solves your problem please click Accept as Solution so others can benefit from it.

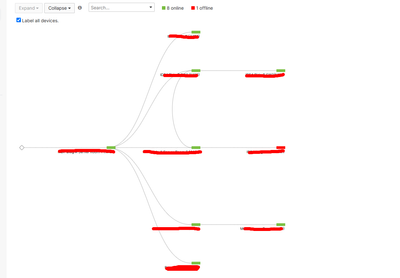

Irin04

RWelch

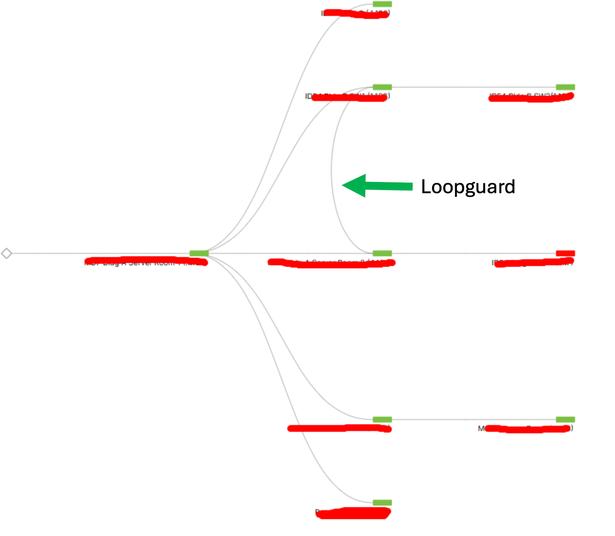

Do you have LoopGuard set here (both sides or ends)? Or is this where you are having the loop?

If you found this post helpful, please give it Kudos. If my answer solves your problem please click Accept as Solution so others can benefit from it.

alemabrahao

I believe it is one of these switches, correct? Check if the port is actually configured to be down, otherwise disconnect the port physically.

But if the ports are not down this is actually the expected behavior.

I am not a Cisco Meraki employee. My suggestions are based on documentation of Meraki best practices and day-to-day experience.

Please, if this post was useful, leave your kudos and mark it as solved.
