VLAN Config on Singled Armed concetrator for SSID Tunneling

SOLVED
Conversationalist

VLAN Config on Singled Armed concetrator for SSID Tunneling

Is it possible to configure multiple vlans on one armed VPN concentrator.

we need a SSID tunneling from MS access point to MX at DC which suppose to allocate a subnet based on SSID.

5 different SSID's distributed across spoke end sites, when users connected these are to be centrally switched.



As per documentation, AP must connect to MX only on VPN concentrator mode, however in this mode i didnt see options to enable VLANS

1 ACCEPTED SOLUTION

Accepted Solutions
Kind of a big deal

Re: VLAN Config on Singled Armed concetrator for SSID Tunneling

Hey @S_Remella ,



You can do what you're asking, but you do not have to configure SSIDs on the MX. You set this under the SSID, and when traffic exits the tunnel on the MX it will be tagged accordingly.

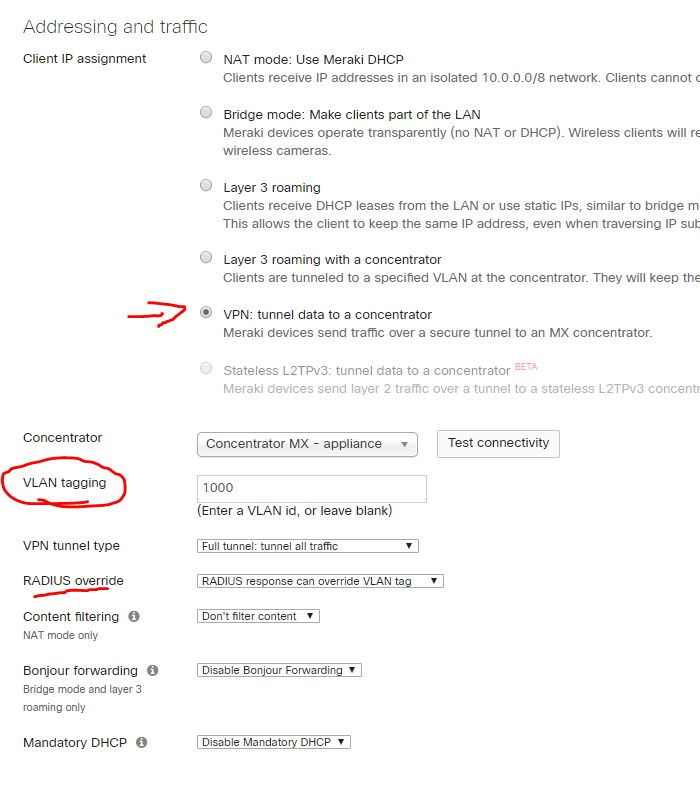

So you set the SSID to VPN tunnel mode and then below you specify the VLAN tag you wish traffic to be tagged with when it exits the MX. Optionally, you can specif the VLAN via RADIUS attributes in the Access-Accept message.




You don't need to set anything on the MX at all for this as it's just layer 2 for whichever VLANs you specify in the SSID config. Just make sure that the appropriate VLANs are trunked to the WAN interface of the MX and it should work.

2 REPLIES 2
Kind of a big deal

Re: VLAN Config on Singled Armed concetrator for SSID Tunneling

Hey @S_Remella ,



You can do what you're asking, but you do not have to configure SSIDs on the MX. You set this under the SSID, and when traffic exits the tunnel on the MX it will be tagged accordingly.



So you set the SSID to VPN tunnel mode and then below you specify the VLAN tag you wish traffic to be tagged with when it exits the MX. Optionally, you can specif the VLAN via RADIUS attributes in the Access-Accept message.




You don't need to set anything on the MX at all for this as it's just layer 2 for whichever VLANs you specify in the SSID config. Just make sure that the appropriate VLANs are trunked to the WAN interface of the MX and it should work.

Conversationalist

Re: VLAN Config on Singled Armed concetrator for SSID Tunneling

Thank you jdsilva!!
