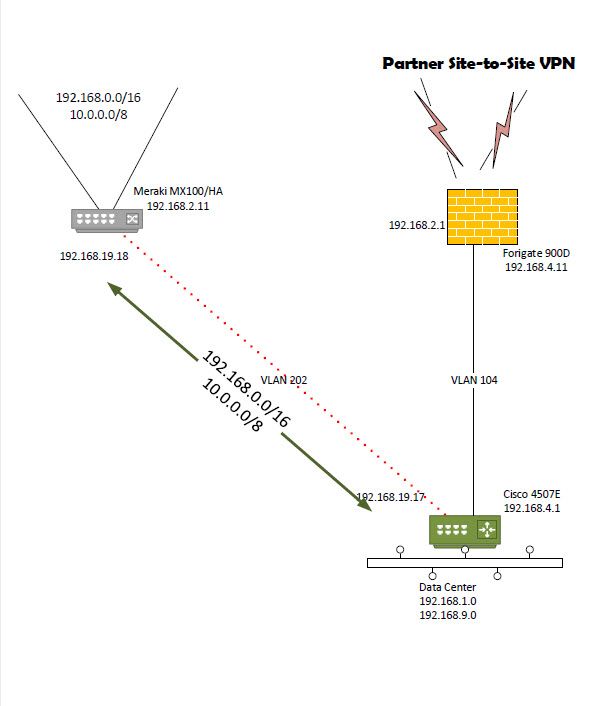

Testing Phase.jpgTesting Phase Three-way Connection

I need to migrate a traffic path which is going through Fortinet firewall device right now.



Once the migration is done, Data Center network(192.168.1.0, 192.168.9.0) will pass Meraki straight without  Fortinet Fortigate firewall.


To test the migration, I am going to connect a cable between Meraki and the Core Switch and pass only a few specific routes (ex 192.168.13.0/24, 10.13.10.0/24). Other subnets will be passed by 192.168.0.0/16.



Once the migration is done, I will remove a cable between Meraki and Foritgate

Final Phase.jpg








If I connect Meraki and Core Switch  will it create a L2 loop?

1 ACCEPTED SOLUTION

Accepted Solutions
Kind of a big deal

Re: Possible L2 Loop Issue?

If they are layer 3 then a loop can not happen.

3 REPLIES 3
Kind of a big deal

Re: Possible L2 Loop Issue?

Are the Foritgate 192.168.2.0 and 192.168.4.0 interaces switched (aka are VLANs) or routed (aka L3 interfaces)?



If they are switched VLANs then yes, you may introduce a loop.



You have a layer 3 switch - I would avoid creating the loop and use the 4507 to control the routing.

Building a reputation

Re: Possible L2 Loop Issue?

Testing Phase.jpg



Ports on the Fortigate are L3 and Cisco 4507E has L2 & SVI. Since there are L3 ports between MX and Cisco Switch Loop will not happen?





Kind of a big deal

Re: Possible L2 Loop Issue?

If they are layer 3 then a loop can not happen.
