Hi Guys, i would like to ask for your help.
I am trying with my colleague configure HA for two MXs 105 with virtual IPs(3 public ip). Everything was working until our customer built second server room and we added second core switch to topology. Before was one Meraki 9300X switch, now we have two 9300X in two separeted server rooms.(without possibility of stack)(Previous design was only one core box). And now we have problem.

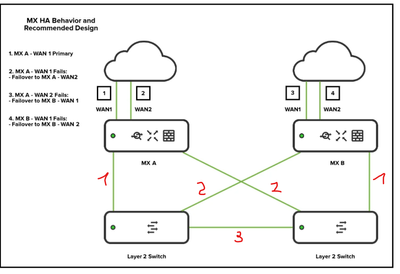

9300X supports only physiscal stacking so we are running RSTP in the topology. Primary CORE A switch has priority of 4096 and secondary has 8192. And every access switches will have one link to CORE A and one link to CORE B(Core B link will be in blocking state because of RSTP). But.....problem is MXs firewalls. It works only in topology, where primary MX has one link to CORE A and secondary switch has one link to CORE B (two server rooms). If we want to add cross links, like in RECOMENDED design, LAN switches stop forwarding.....MXs are looking fine where is one active and second is passive ready, but no Internet conectivity. Switches are two cores(meraki 9300X) and access switches are also Meraki(different models)....Do you have some idea what is the problem? In picture, topology works without links(2), if we add links(2), it will stop forward.
Thanks a lot.
