In site to site VPN detach hubs vpn tunnel

[Hank_Huang]

Hi Guys,

If I management MXs on same organization.
I need create site to site VPN between this MXs.
But VPN Group A and Group B did not create VPN tunnel.

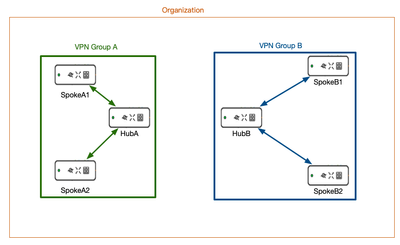

The diagram like below.

In documentation is say "If the MX is configured as a Hub, it will build VPN tunnels to all other Hub MXs in the Auto VPN domain ".
Did it's possible, do not build VPN between hubs?

Thanks.

[PhilipDAth · Accepted solution]

I believe a recent beta firmware has an option for this.  I think you have to open a support ticket to get this option.

Another easy option is to create VPN firewall rules to only allow what you want.

https://documentation.meraki.com/MX/Site-to-site_VPN/Site-to-site_VPN_Firewall_Rule_Behavior

[Hank_Huang]

I think VPN firewall isn't bester solution on this case.
This can't solve this problem when more spoke site use same subnet.

The best way is waiting Meraki release new feature.

[PhilipDAth]

>This can't solve this problem when more spoke site use same subnet.

If that is the actual issue it sounds like the networks should actually be separate orgs.
