Hi All,

Having discovered (with your help) that OSPF on the MX95 only advertises VPN routes, I am looking at other options for site firewall resilience in case one or the other should fail. I believe it is the only single point of failure left in the network and could be fixed by adding a 2nd MX95 at each site and running 'warm spare' mode.

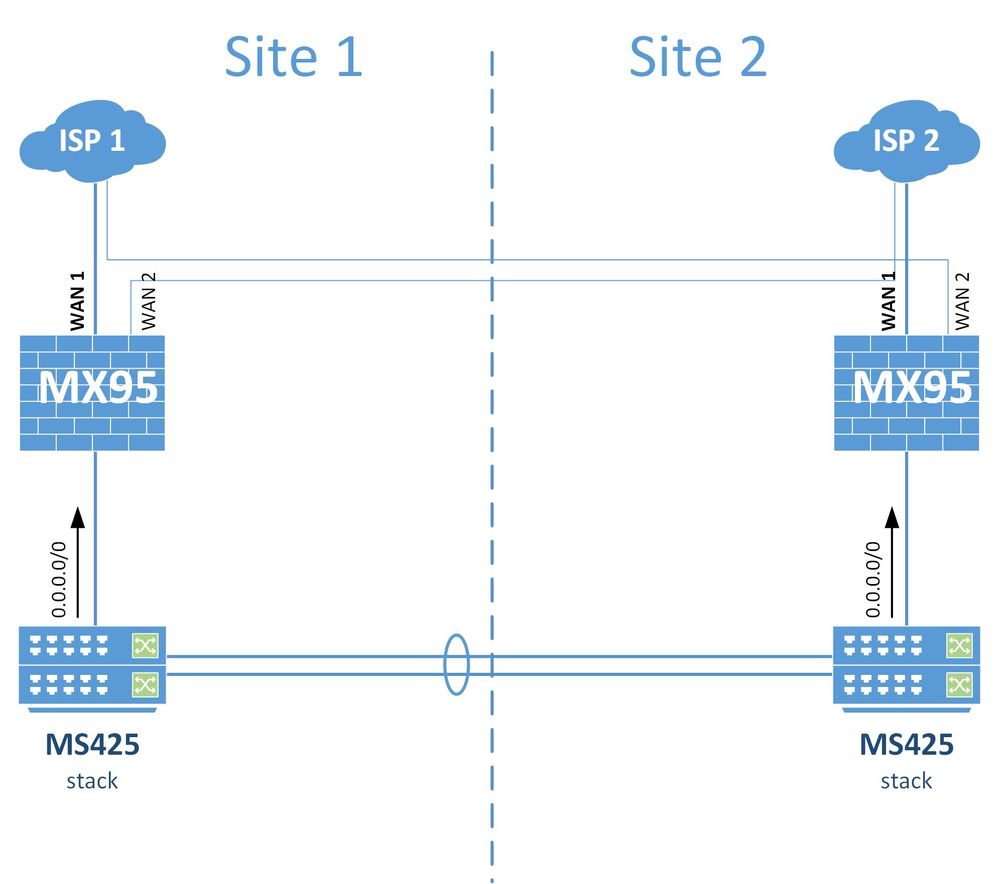

Have I missed anything? is there a way to create a policy to track an upstream IP address and change route 'weight' is the upstream device goes offline or any other way to achieve this? currently each site has a static default route pointing to the local MX95, but no mechanism to route via the 2 x 10G links between the cores.

many thanks in advance for any pointers,

Regards

John L.

[alemabrahao]

Yes, the redundancy between the MXs is via Warm Spare.

If you are talking about SD-WAN specifically, you can create SD-WAN Policies to forward traffic to a specific WAN link.

https://documentation.meraki.com/MX/Firewall_and_Traffic_Shaping/SD-WAN_and_Traffic_Shaping#Flow_pre...
