Client VPN and Wireless Concentrator isolation rules

[nscheffer]

Hi,

Maybe it's simple to do it but I did,'t find how to do it !

I have a MX68 in NAT mode with 2x WAN links with internet fiber access and the following clients connected to it :

- my local LAN with Meraki MRs  with a local net 192.168.x.0/24

- external users using Systems Manager with the client VPN on a specific net 192.168.y.0/24

- remote Meraki MRs using the VPN to Wireless concentrator on the MX68 with net 192.168.z.0/24

How to control and avoid that client VPN and users on the remote Meraki MRs can access internet from the MX68 but cannot access local LAN on my MX68 net 192.168.x.0/24 ?

Thanks in advance.

Regards

Nicolas

[Wickus · Accepted solution]

Hi Nicolas

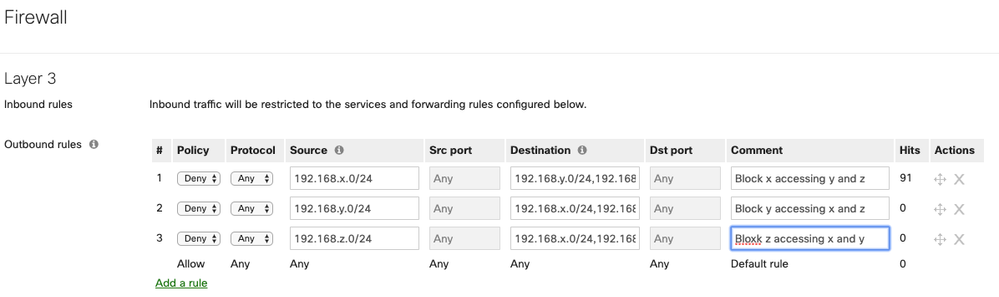

Have you tried using the layer 3 firewall on the MX

goto Security & SD-WAN -> Configure -> Firewall

[nscheffer]

Hi Wickus,

Not yet tried. I will do some test, thanks.
Seems to be easy and simple.
