Overview

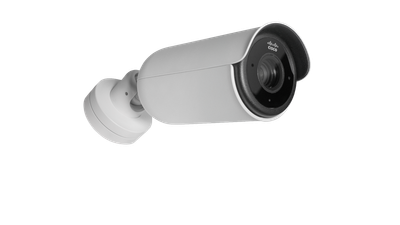

Introducing the latest addition to the third-generation MV smart camera family to the demo platforms: the MV53X outdoor bullet camera. The third-generation cameras offer advanced capability, including Attribute Search and Smart Retention.
Demo Platforms
Meraki Launchpad🚀 > San Francisco > MV53X
Cisco Meraki Platform > San Francisco > MV53X
Comparison between MV53X and MV52
Feature | MV53X | MV52 | Improvement in MV53X |
Sensor Resolution | 8.41MP | 8.4MP | Slight sensor improvement supports video recording 4k up to 15 fps |
Field of View (FoV) | 12°-37° horizontal | 12°-37° horizontal | Same |
Focal Length | 12.5-38mm | 12-40mm | Minor adjustment |
Aperture | f/2.05 - f/2.2 | f/2.3-16 | Improved low-light capability |
Encoding Efficiency | H.264 Smart Codec | Standard H.264 | Reduced bandwidth usage |
Built-in Analytics | Attribute search plus all MV52 analytic features | Motion Search, Recap, Heatmaps, Line Crossing, Area Occupancy, MV Sense, Custom Computer Vision | |
Power Consumption
| 30W (PoE+) | 25.5W (PoE+) | Increased for higher processing power |
Weather Resistance | IP67 | IP67 | Same |
Storage | 1TB SSD | 1TB SSD | Same |
Retention Settings | Smart Retention plus all MV52 retention setting options | Optimized retention settings (scheduling, motion-based) for variable retention |
