New views don't show switch uptime correctly

[cmr]

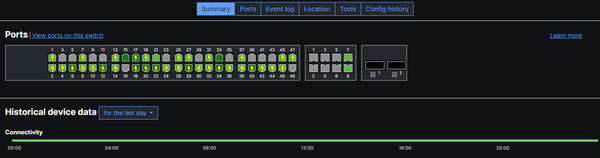

Looking at some C9300s that are device configured, they show grey for the switch connectivity to the cloud, indicating that it is offline for the 2-hour and day views, of course in the old views it works just fine.  Come on Cisco, these kinds of issues shouldn't be in a production system...

Also note how the old view has a scale on the timeline, and the new takes up more space with less information 😠

[RaphaelL]

Seems to be affecting any switches with the new view

[RaphaelL]

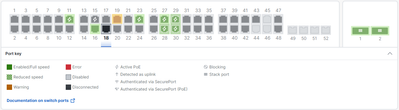

The colors from the port key tab do not even match the real colors used... that's pretty basic imo

warning =

[cmr]

Now where is the 🤣 emoji instead of Kudos!

[spaladug]

@RaphaelL if a port is selected then the non-selected ports will be lighter and the colors will be different than the legend. That looks to be the case based on your screenshot. If you do not select any port then the colors should match up with the legend. Can you confirm that?

[RaphaelL]

You are right. Unselected ports have a different color combo that doesn't match the port key. Only when you select the port , that the colors match. Theres a first for everything

[spaladug · Accepted solution]

@cmr we are aware of the issue and a fix is being worked on. Please open a support case and we can notify you as soon as it is resolved.
