MX64 Client VPN Setup

[Seth_B]

Hello there,

At our office, we have a Cisco Meraki MX64 and we've been trying to setup a VPN server to allow remote workers to connect to the MX64 and be able to access devices on the local network. I've set up a Wireguard VPN server on the MX64 and am able to make a successful VPN connection to the firewall from a remote network, but the firewall is only routing the traffic back out to the internet and never into the local network.

I've tried looking into how to setup different firewall rules and VPN settings to allow access to the local network, but nothing has been working. I am wondering if there is something specific I should be configuring on the device, or if I misunderstood what a client VPN was used for and should use something else like the site-to-site VPN.

Thanks in advance for any responses.

[alemabrahao]

Your problem is actually routing, you need to have a route to the networks behind the MX in your wireguard pointing to the MX as the next hop and in the MX you must create a return route.

It would be of great help if you had a topology of your network.

Another question, why don't you use Meraki VPN instead of Wireguard?

[Seth_B]

Hello,

I just wanted to start off by saying thanks for responding to my post so swiftly.

I have one question on where I am confused, and it's on the difference between Meraki VPN and Wireguard. In the Meraki Portal, I am able to go to a section titled "Client VPN" and setup a server on the Cisco Meraki where I use Wireguard to connect to the firewall.

If there is another option called "Meraki VPN" that would allow remote users to connect to the firewall to be able to access local network resources, I am for it. But I am just curious as to what is "Meraki VPN" and if that is what I am using or not. If not, where would I go to configure the Meraki VPN.

[alemabrahao]

In fact, you're the one who made me curious, as far as I know, Meraki only works with Client VPN and Anyconnect.

In the Client VPN itself, you will use the native Windows Client (L2TP Connection) to configure the client's VPN connection.

And Anyconnect uses Cisco's Secure Client application.

Can you share a Wireguard screenshot that you commented on? If Meraki is offering this it appears to be a new feature.

[Seth_B]

I'm terribly sorry. I was researching a couple of different options, with one of them being a separate server hosting Wireguard, and have been incorrectly calling the Meraki VPN Wireguard. I now see what you are saying about there being the Meraki VPN and AnyConnect as the two options.

Now that we have that clarified, do i still need to figure out some kind of routing rule between the client VPN subnet and the local network subnet? And should I stick with the Client VPN that I have been using or should I switch to using AnyConnect instead?

[alemabrahao · Accepted solution]

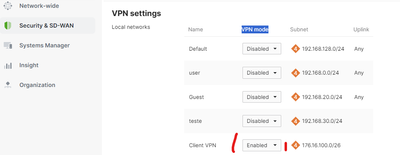

Go to Security & SD-WAN > Configure > Site-to-site VPN and enable Client VPN in VPN mode.

This way you will receive the routes for your Local network. But remember that you must enable VPN mode for your local networks if it is not enabled.

[Seth_B]

So I did some fiddling around (deleting and remaking the subnets) and they are now able to reach each other. Thank you very much for your help and walking me through how to solve the issue. I thank you very much and wish you the best.
